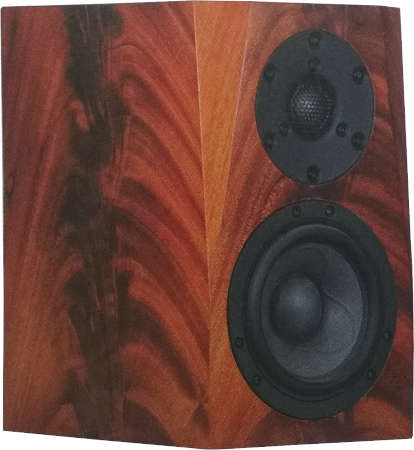

Illuminata 15 BE (Beryllium)   Shelf speaker as in Hobby Hifi 5/2020

Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 80 dB
  • size (HxWxD): 300 x 180 x 246 mm
  • frequency range (-8dB): 42 - 40000 Hz
  • crossover frequency(s): 2200 Hz
  • speaker type: closed box

Illuminata 15 BE (Beryllium) is a two way compact speaker.

Illuminata 15 BE (Beryllium) is a closed-cabinet loudspeaker with drivers of Scan Speak .

The kit is delivered with the following drivers:
- a Scan Speak D3004/664000 tweeter
- a Scan Speak 15WU/8741T00 woofer

It is also available with Silk Dome.

The loudspeaker has been developed by Bernd Timmermanns.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum as shown in the waterfall diagram is exemplary, free of any disturbing resonance.

At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 0,5% above 300 Hz.

Our kit consists of

  • ScanSpeak Illuminator D3004/6640-00, beryllium
  • ScanSpeak Midrange 15WU8741T 8Ohm
  • Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • Binding Post PK28 I, gold plated (one pair, red and black)
  • 2m Speaker cable 2x1.5 mm2, transparent
  • 1,5x Pan screws 4x20 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Mundorf MCAP EVO Oil 3.3 μF; / 450 V
  • Mundorf MCAP EVO Oil 8.2 μF; / 450 V
  • Audaphon MKP CAP Superior 2.2 μF; / 400 Vdc
  • Audaphon MKP CAP Superior 10 μF; / 400 Vdc
  • Audaphon MKP CAP Superior 12 μF; / 400 Vdc
  • JB, electrolytic capacitor, bipolar, 150 uF/50 Vdc
  • JB, electrolytic capacitor, bipolar, 220 uF/50 Vdc
  • Mundorf, electrolytic capacitor, unetched, 47μF / 50 Vdc
  • 2x Mundorf baked varnish air core coil BL71, 0.39 mH/0.51 Ohm
  • Mundorf air core coil L50, 3.3 mH/3.13 0hm
  • Mundorf ferrite core coil F50 12mH/4.31Ohm
  • Mundorf H core baked varnish coil BH100, 2.2 mH/0.21 0hm
  • Metal-oxide resistor, 5W 3.3 Ohm (orange-orange-gold)
  • Metal-oxide resistor, 5W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 5W 8.2 Ohm (grey-red-gold)
  • Metal-oxide resistor, 5W 12 Ohm (brown-red-black)
  • Metal-oxide resistor, 5W 15 Ohm (brown-green-black)

Kit without cabinet, price per speaker   EUR 991,00 excl. VAT: € 832.77 / $ 899.39

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Scan Speak D3004/664000 are of type polypropylen (MKP) Mundorf MCAP EVO Silver Gold Oil 450 V.

  • Mundorf MCAP EVO Silver Gold Öl 3.3 μF; / 450 V
  • Mundorf MCAP EVO Silver Gold Öl 8.2 μF; / 450 V
  • Audaphon MKP CAP Superior 2.2 μF; / 400 Vdc
  • Audaphon MKP CAP Superior 10 μF; / 400 Vdc
  • Audaphon MKP CAP Superior 12 μF; / 400 Vdc
  • JB, electrolytic capacitor, bipolar, 150 uF/50 Vdc
  • JB, electrolytic capacitor, bipolar, 220 uF/50 Vdc
  • Mundorf, electrolytic capacitor, unetched, 47μF / 50 Vdc
  • 2x Mundorf baked varnish air core coil BL71, 0.39 mH/0.51 Ohm
  • Mundorf air core coil L50, 3.3 mH/3.13 0hm
  • Mundorf ferrite core coil F50 12mH/4.31Ohm
  • Mundorf H core Hepta Coil LH45, 2,2 mH/0.21 Ohm
  • Metal-oxide resistor, 5W 3.3 Ohm (orange-orange-gold)
  • Metal-oxide resistor, 5W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 5W 8.2 Ohm (grey-red-gold)
  • Metal-oxide resistor, 5W 12 Ohm (brown-red-black)
  • Metal-oxide resistor, 5W 15 Ohm (brown-green-black)

Kit with high-end-crossover without cabinet, price per speaker   EUR 1103,00 excl. VAT: € 926.89 / $ 1001.04

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

  • JB, electrolytic capacitor, bipolar advanced, 22μF / 100 Vdc
  • Mundorf baked varnish air core coil BL71, 0.47 mH/0.57 Ohm
  • ceramic resistor 8.2 Ohm/20 Watt

Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 14,20 excl. VAT: € 11.93 / $ 12.89

universal PCB

If you prefer to mount the crossover components on a 240 x 165 mm universal PCB instead on wood:
Universal PCB RA240, order no.. str-RA240, price per unit:   EUR 8,60 excl. VAT: € 7.23 / $ 7.81
We recommend a half board per kit (one board for a speaker pair)
