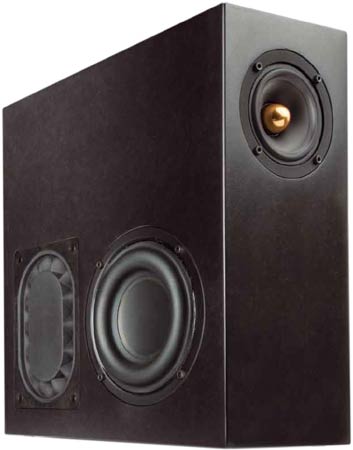

Omnes Audio SideKick M   Shelf speaker as in K+T 1/2018

Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 80 dB
  • size (HxWxD): 350 x 140 x 320 mm
  • frequency range (-8dB): 48 - 21000 Hz
  • crossover frequency(s): Hz
  • speaker type: passive radiator

Omnes Audio SideKick M is a two way compact speaker.

Omnes Audio SideKick M is a loudspeaker with drivers of Omnes Audio and Tang Band. A passive radiator provides deep bass.

The kit is delivered with the following drivers:
- a Omnes Audio BB 3.5 full range driver
- a Tang Band W5-1138 SMF woofer

The loudspeaker has been developed by Blue Planet Acoustic.

The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the full range driver.
- a first order low-pass filter (6 dB per octave slope) for the woofer.

The frequency response of this speaker is mostly linear.

For a wide band driver, the decay spectrum is excellent.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0.5% above 600 Hz and doesn't exceed 1% at 95 dB at 1 m between 600 and 15000 Hz.

Our kit consists of

  • Omnes Audio, full range BB 3.5
  • Tang Band W5-1138 SMF
  • Tang Band PR-14
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Terminal T105 Au, with brass, gold plated
  • 2m Speaker cable 2x1.5 mm2, transparent
  • Pan screws 3.5x17 black, cross recess, 8 pieces
  • Pan screws 4x20 black, cross recess, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKT CAP 15 μF / 160 Vdc
  • electrolytic capacitor, unetched, 68uF / 50 Vdc
  • 1.0 mm air core coil, 0.68 mH/0.39 Ohm
  • Audaphon M core coil M14, 3.9 mH/0.22 0hm
  • Mundorf H core coil H71, 4.7 mH/0.46 0hm
  • ceramic resistor 15 Ohm/10 Watt
  • ceramic resistor 2.7 Ohm/20 Watt
  • Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)

Kit without cabinet, price per speaker   EUR 182,00 excl. VAT: € 152.94 / $ 165.18

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the fullrange driver are foil capacitors of type MKP (polypropylen) and MKT (polystyrol).

Kit with high-end-crossover without cabinet, price per speaker   EUR 217,00 excl. VAT: € 182.35 / $ 196.94

universal PCB

If you prefer to mount the crossover components on a 159 x 127 mm universal PCB instead on wood:
Universal PCB RA160, order no.. str-RA160, price per unit:   EUR 5,90 excl. VAT: € 4.96 / $ 5.35
We recommend one board per kit (two boards for a speaker pair)
