Silenos   Floorstanding as in K+T 1/2019

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 88 dB
  • size (HxWxD): 1100 x 262 x 300 mm
  • frequency range (-8dB): 31 - 23000 Hz
  • crossover frequency(s): 200, 2150 Hz
  • speaker type: bass reflex
Enlarge

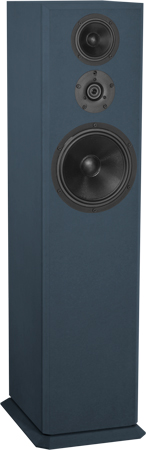

Silenos is a three way floorstanding speaker.

Our special recommendation:
A top-class floorstanding loudspeaker - at the price of a mid-range loudspeaker!

Silenos is a bass-reflex cabinet loudspeaker with drivers of Scan-Speak .

The kit is delivered with the following drivers:
- a Scan-Speak R2604/832000 tweeter
- a Scan-Speak 12W-4524G00 mids driver
- a Scan-Speak 22W-4534G00 woofer

The loudspeaker has been developed by Gerd Lommersum and Dennis Frank.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a band pass consisting of a 2nd order high pass filter (12 dB per octave slope) and a 3rd order low-pass filter (18 dB per octave slope) for the mids-woofer.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The kit is delivered with a special made silenos pcb, for very easy building of the crossovers.

The frequency response of this speaker is perfectly linear.

The decay spectrum is nearly perfect.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0,5% above 200 Hz and doesn't exceed 1,3% at 95 dB at 1 m between 300 and 15000 Hz.

  • ScanSpeak ring radiator R2604/832000
  • ScanSpeak Mid 12W-4524G00
  • ScanSpeak Woofer 22W-4534G00
  • 2x Bass reflex tube HP70 XL, 70x220 mm, black
  • 0,5x Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Damping Sonofil 100 x 35 cm for 20 litres
  • Binding Post PK31, gold plated (one pair, red and black)
  • 3m Speaker cable 2x1.5 mm2, transparent
  • 2x Pan screws 4x20 black, cross recess, 8 pieces
  • PCB for DIY Kit Silons
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 10 μF / 400 Vdc
  • 2x Audaphon MKP CAP Superior 22 μF / 400 Vdc
  • 2x Audaphon MKT CAP 10 μF / 160 Vdc
  • Audaphon MKT CAP 100 μF / 160 Vdc
  • Mundorf, electrolytic capacitor, etched, 150 μF/63 Vdc
  • Mundorf, electrolytic capacitor, etched, 330 μF/63 Vdc
  • 1.0 mm air core coil, 0.22 mH/0.21 Ohm
  • 1.0 mm air core coil, 0.68 mH/0.39 Ohm
  • 0.7 mm air core coil, 0.27 mH/0.44 Ohm
  • Audaphon M core coil M14, 4.7 mH/0.24 0hm
  • Mundorf H core coil H71, 2.2 mH/0.38 0hm
  • Mundorf H core coil H71, 22 mH/1.49 0hm
  • ceramic resistor 1.5 Ohm/20 Watt
  • ceramic resistor 3.9 Ohm/20 Watt
  • Metal-oxide resistor, 10W 0.68 Ohm 5% (blue-grey-silver)
  • Metal-oxide resistor, 10W 1.5 Ohm (brown-green-gold)

Kit without cabinet, price per speaker   EUR 406,00 excl. VAT: € 341.18 / $ 368.47

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Scan-Speak R2604/832000 are of type polypropylen (MKP) Clarity-Cap ESA 250 V.

Kit with high-end-crossover without cabinet, price per speaker   EUR 472,00 excl. VAT: € 396.64 / $ 428.37
