Todo   Floorstanding as in K+T 6/2017

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 87 dB
  • size (HxWxD): 992 x 410 x 307 mm
  • frequency range (-8dB): 25 - 25000 Hz
  • crossover frequency(s): 110, 1950 Hz
  • speaker type: closed box

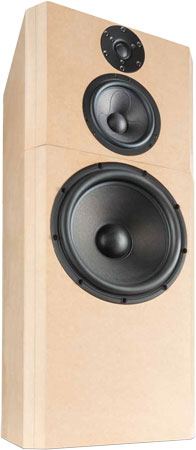

Todo is a three way floorstanding speaker.

Todo is a closed-cabinet loudspeaker with drivers of ScanSpeak .

The kit is delivered with the following drivers:
- a ScanSpeak D3004/6640-00 tweeter
- a ScanSpeak 18WU-4741T00 mids driver
- a ScanSpeak 32W/4878T00 woofer

The loudspeaker has been developed by Holger Barske, Thomas Schmidt and Christian Gather.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a band pass consisting of a 2nd order high pass filter (12 dB per octave slope) and a 2nd order low-pass filter (12 dB per octave slope) for the mids-woofer.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum as shown in the waterfall diagram is exemplary, free of any disturbing resonance.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0,3% above 300 Hz and doesn't exceed 0,8% at 95 dB at 1 m between 300 Hz and 10000 Hz. That is quite splendid.

Our kit consists of

  • ScanSpeak Illuminator D3004/6640-00, beryllium,1/2 package
  • ScanSpeak Midrange 18WU4741T00 4Ohm
  • ScanSpeak Woofer 32W/4878T00
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 5x Damping Sonofil 100 x 35 cm for 20 litres
  • Bi-wiring Terminal T122 Au with brass, gold plated
  • 4m Speaker cable 2x1.5 mm2, transparent
  • Pan screws 3.5x17 black, cross recess, 8 pieces
  • 2x Pan screws 4x20 black, cross recess, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 4.7 μF / 400 Vdc
  • 2x Audaphon MKP CAP Superior 18 μF / 400 Vdc
  • Electrolytic capacitor, etched 330 μF / 100 V
  • electrolytic capacitor, etched, 33 μF/100 Vdc
  • electrolytic capacitor, etched, 150 μF/63 Vdc
  • 2x electrolytic capacitor, etched, 680 μF/63 Vdc
  • 1.0 mm air core coil, 1.0 mH/0.49 Ohm
  • 1.0 mm air core coil, 6.8 mH/1.56 Ohm
  • 0.7 mm air core coil, 0.27 mH/0.45 Ohm
  • 0.7 mm air core coil, 2.7 mH/1.53 Ohm
  • Mundorf bs125 core coil 8.2mH/0.41Ohm
  • Mundorf H core coil H100, 15 mH/0.83 0hm
  • Metal-oxide resistor, 10W 1.0 Ohm (brown-black-gold)
  • Metal-oxide resistor, 10W 1.8 Ohm (brown-grey-gold)
  • Metal-oxide resistor, 10W 2.2 Ohm (red-red-gold)
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 10W 5.6 Ohm (green-blue-gold)

Kit without cabinet, price per speaker   EUR 1609,00 excl. VAT: € 1352.10 / $ 1460.27

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils and copper foil coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the tweeter and the mid range driver are of Clarity Cap and Audaphon capacitors.

Kit with high-end-crossover without cabinet, price per speaker   EUR 2219,00 excl. VAT: € 1864.71 / $ 2013.88

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 8,40 excl. VAT: € 7.06 / $ 7.62

universal PCB

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 150x115 mm, tin plated, price per unit:   EUR 4,70 excl. VAT: € 3.95 / $ 4.27
We recommend three boards per kit (6 boards per speaker pair)
