To our building proposals with SB Acoustics drivers.




Tweeter

SB Acoustics SB14ST-C000-4

order no. sb-14st-c000-4

EUR 29,56 excl. VAT: € 24.84 / $ 26.83

12,4 mm tweeter with high quality cone.

  • resonance frequency fs = 1300 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • voice coil diameter = 12,4 mm
  • mounting diameter d = 24,2 mm
  • overall diameter d = 24,2 mm
  • mounting depth (not countersunk) t = 19 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics Satori TW29R

order no. sb-satori-tw29r

EUR 144,00 excl. VAT: € 121.01 / $ 130.69

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 100 W
  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92,5 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,76 (Qms=2, Qes=1,22)
  • voice coil diameter = 29 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 37,25 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB26STAC-C000-4

order no. sb-26STAC-C000-4

EUR 44,00 excl. VAT: € 36.97 / $ 39.93

25,4 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 120 W
  • resonance frequency fs = 750 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 1,6 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 1,12 (Qms=3, Qes=1,78)
  • voice coil diameter = 25,4 mm
  • mounting diameter d = 82,8 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 39,63 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB26STC-C000-4

order no. sb-26STC-C000-4

EUR 26,80 excl. VAT: € 22.52 / $ 24.32

25,4 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 120 W
  • resonance frequency fs = 750 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 1,6 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 1,12 (Qms=3, Qes=1,78)
  • voice coil diameter = 25,4 mm
  • mounting diameter d = 82,8 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 39,63 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB26STCN-C000-4

order no. sb-26STCN-C000-4

EUR 34,00 excl. VAT: € 28.57 / $ 30.86

25,4 mm tweeter with specially treated paper cone.

  • power handling (continuous/programme) = 120 W
  • resonance frequency fs = 960 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 1,8 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 0,84 (Qms=1,6, Qes=1,77)
  • voice coil diameter = 25,4 mm
  • mounting diameter d = 46,15 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 29,63 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB29RDNC-C000-4

order no. sb-29RDNC-C000-4

EUR 68,79 excl. VAT: € 57.81 / $ 62.43

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 100 W
  • resonance frequency fs = 680 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,6 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,45 (Qms=1,2, Qes=0,72)
  • voice coil diameter = 29 mm
  • mounting diameter d = 55,5 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 30,63 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB21SDC-C000-4

order no. sb-21sdc-c000-4

EUR 41,58 excl. VAT: € 34.94 / $ 37.74

20,4 mm tweeter with high quality cone.

  • resonance frequency fs = 720 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 1,5 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 4,9 cm2
  • effective mechanical mass incl. air load mms = 0,25 g
  • total Q factor Qts = 0,94 (Qms=2,41, Qes=1,55)
  • voice coil diameter = 20,4 mm
  • mounting diameter d = 60 mm
  • overall diameter d = 92 mm
  • mounting depth (not countersunk) t = 31,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB26ADC-C000-4

order no. sb-26ADC-C000-4

EUR 52,32 excl. VAT: € 43.97 / $ 47.48

25,4 mm tweeter with aluminium cone.

  • resonance frequency fs = 680 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 1,6 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,38 g
  • total Q factor Qts = 1,11 (Qms=2,7, Qes=1,88)
  • voice coil diameter = 25,4 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 38,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB29SDAC-C000-4

order no. sb-29sdac-c000-4

EUR 48,14 excl. VAT: € 40.45 / $ 43.69

29 mm tweeter with specially treated paper cone.

  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,4 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,8 (Qms=2,94, Qes=1,09)
  • voice coil diameter = 29 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 40,8 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB29BNC-C000-4

order no. sb-29bnc-c000-4

EUR 313,21 excl. VAT: € 263.20 / $ 284.26

29 mm tweeter with high quality cone.

  • resonance frequency fs = 950 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,6 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,46 g
  • total Q factor Qts = 0,69 (Qms=1,36, Qes=1,4)
  • voice coil diameter = 29 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 33,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB29BAC-C000-4

order no. sb-29bac-c000-4

EUR 282,00 excl. VAT: € 236.97 / $ 255.93

29 mm tweeter with high quality cone.

  • resonance frequency fs = 650 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,4 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,46 g
  • total Q factor Qts = 0,84 (Qms=2,71, Qes=1,22)
  • voice coil diameter = 29 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 40,23 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB21RDC-C000-4

order no. sb-21rdc-C000-4

EUR 51,70 excl. VAT: € 43.45 / $ 46.92

20,4 mm tweeter with specially treated paper cone.

  • resonance frequency fs = 760 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 1,5 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 4,6 cm2
  • effective mechanical mass incl. air load mms = 0,25 g
  • total Q factor Qts = 1 (Qms=2,54, Qes=1,64)
  • voice coil diameter = 20,4 mm
  • mounting diameter d = 60 mm
  • overall diameter d = 92 mm
  • mounting depth (not countersunk) t = 30,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB29RDAC-000-4

order no. sb-29rdac-c000-4

EUR 61,91 excl. VAT: € 52.03 / $ 56.19

29 mm tweeter with high quality cone.

  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,4 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,64 (Qms=2,2, Qes=0,9)
  • voice coil diameter = 29 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 37,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB19ST-C000-4

order no. sb-19st-c000-4

EUR 23,50 excl. VAT: € 19.75 / $ 21.33

19,1 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 980 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 1,75 N/A
  • voice coil inductance L = 0,07 mH
  • effective piston radiating area Sd = 3,8 cm2
  • effective mechanical mass incl. air load mms = 0,22 g
  • total Q factor Qts = 1,22 (Qms=6,45, Qes=1,5)
  • voice coil diameter = 19,1 mm
  • maximum peak linear excursion vibration xlin = +/- 0,6 mm
  • mounting diameter d = 60 mm
  • overall diameter d = 88 mm
  • mounting depth (not countersunk) t = 21 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB26ST-C000-5

order no. sb-26st-c000-5

EUR 29,26 excl. VAT: € 24.59 / $ 26.56

25,4 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 870 Hz
  • impedance R = 5 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 4,4 Ohm
  • force factor BL = 2,2 N/A
  • voice coil inductance L = 0,07 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,33 g
  • total Q factor Qts = 1,23 (Qms=5, Qes=1,64)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 0,6 mm
  • mounting diameter d = 81,3 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 33,2 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29R-B

order no. sb-satori-tw29r-b

EUR 144,00 excl. VAT: € 121.01 / $ 130.69

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,44 g
  • total Q factor Qts = 0,77 (Qms=2, Qes=1,24)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 37,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29RN

order no. sb-satori-tw29rn

EUR 185,46 excl. VAT: € 155.85 / $ 168.32

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 700 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,44 g
  • total Q factor Qts = 0,5 (Qms=2,1, Qes=0,65)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 26,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29RN-8

order no. sb-satori-tw29rn-8

EUR 185,46 excl. VAT: € 155.85 / $ 168.32

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 650 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,42 g
  • total Q factor Qts = 0,48 (Qms=1,74, Qes=0,66)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,2 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 26,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29RN-B

order no. sb-satori-tw29rn-b

EUR 185,46 excl. VAT: € 155.85 / $ 168.32

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 700 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,44 g
  • total Q factor Qts = 0,5 (Qms=2,1, Qes=0,65)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 26,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29RN-B-8

order no. sb-satori-tw29rn-b-8

EUR 165,00 excl. VAT: € 138.66 / $ 149.75

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 650 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,42 g
  • total Q factor Qts = 0,48 (Qms=1,74, Qes=0,66)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,2 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 26,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29BN

order no. sb-satori-tw29bn

EUR 399,00 excl. VAT: € 335.29 / $ 362.12

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 725 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,46 g
  • total Q factor Qts = 0,47 (Qms=2,1, Qes=0,6)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 27,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29BN-8

order no. sb-satori-tw29bn-8

EUR 399,00 excl. VAT: € 335.29 / $ 362.12

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 750 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93,5 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,44 g
  • total Q factor Qts = 0,55 (Qms=1,75, Qes=0,8)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,2 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 27,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29BN-B

order no. sb-satori-tw29bn-b

EUR 399,00 excl. VAT: € 335.29 / $ 362.12

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 725 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,46 g
  • total Q factor Qts = 0,47 (Qms=2,1, Qes=0,6)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 27,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29BN-B-8

order no. sb-satori-tw29bn-b-8

EUR 399,00 excl. VAT: € 335.29 / $ 362.12

29 mm tweeter with high quality cone.

  • resonance frequency fs = 750 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93,5 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,44 g
  • total Q factor Qts = 0,55 (Qms=1,75, Qes=0,8)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,2 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 27,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29B

order no. sb-satori-tw29b

EUR 358,34 excl. VAT: € 301.13 / $ 325.22

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,46 g
  • total Q factor Qts = 0,9 (Qms=2,9, Qes=1,3)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 37,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29B-B

order no. sb-satori-tw29b-b

EUR 358,34 excl. VAT: € 301.13 / $ 325.22

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,46 g
  • total Q factor Qts = 0,9 (Qms=2,9, Qes=1,3)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 37,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29D

order no. sb-satori-tw29d

EUR 152,24 excl. VAT: € 127.93 / $ 138.17

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,81 (Qms=2,2, Qes=1,27)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 39,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29D-B

order no. sb-satori-tw29d-b

EUR 138,00 excl. VAT: € 115.97 / $ 125.24

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92,5 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,81 (Qms=2,2, Qes=1,27)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 39,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29DN

order no. sb-satori-tw29dn

EUR 168,30 excl. VAT: € 141.43 / $ 152.74

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 650 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,43 (Qms=1,66, Qes=0,57)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 29,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29DN-8

order no. sb-satori-tw29dn-8

EUR 168,30 excl. VAT: € 141.43 / $ 152.74

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 650 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,43 g
  • total Q factor Qts = 0,46 (Qms=1,61, Qes=0,65)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 29,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29DN-B

order no. sb-satori-tw29dn-b

EUR 168,30 excl. VAT: € 141.43 / $ 152.74

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 650 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,43 (Qms=1,66, Qes=0,57)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 29,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29DN-B-8

order no. sb-satori-tw29dn-b-8

EUR 168,30 excl. VAT: € 141.43 / $ 152.74

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 650 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,43 g
  • total Q factor Qts = 0,46 (Qms=1,61, Qes=0,65)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 29,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29TXN-B

SB Acoustics SATORI TW29TXN-B

order no. sb-satori-tw29txn-b

EUR 255,00 excl. VAT: € 214.29 / $ 231.43

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 650 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,51 g
  • total Q factor Qts = 0,46 (Qms=1,62, Qes=0,65)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 27,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29TXN-B-8

SB Acoustics SATORI TW29TXN-B-8

order no. sb-satori-tw29txn-b-8

EUR 255,00 excl. VAT: € 214.29 / $ 231.43

29 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 680 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93,5 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,49 g
  • total Q factor Qts = 0,46 (Qms=1,63, Qes=0,77)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 27,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29BNWG-4 / Beryllium

order no. sb-satori-tw29bnwg-4

EUR 459,00 excl. VAT: € 385.71 / $ 416.57

29 mm tweeter with beryllium cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 700 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,46 g
  • total Q factor Qts = 0,46 (Qms=2,1, Qes=0,6)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 52,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SATORI TW29BNWG-8 / Beryllium

order no. sb-satori-tw29bnwg-8

EUR 459,00 excl. VAT: € 385.71 / $ 416.57

29 mm tweeter with beryllium cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 750 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,44 g
  • total Q factor Qts = 0,46 (Qms=1,75, Qes=0,8)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 52,7 mm
PDF data sheet

show kits to this chassis hide kits




Air Motion Transformer

SB Acoustics SATORI AT60NC-4

SB Acoustics SATORI AT60NC-4

order no. sb-satori-at60nc-4

EUR 263,87 excl. VAT: € 221.74 / $ 239.48

tweeter with high quality cone.

  • power handling (continuous/programme) = 100 W
  • resonance frequency fs = 2200 Hz
  • impedance R = 4 Ohm
  • DC resistance Re = 3,9 Ohm
  • effective piston radiating area Sd = 12,6 cm2
  • mounting diameter d = 66,4x68 mm
  • overall diameter d = 90x74 mm
  • mounting depth (not countersunk) t = 25 mm
PDF data sheet

show kits to this chassis hide kits




Full Range

SB Acoustics SB36WBAC21-4

order no. sb-36wbac21-4

EUR 17,69 excl. VAT: € 14.87 / $ 16.05

full range driver with high quality cone.

  • resonance frequency fs = 200 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 77 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 1,76 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 4,2 cm2
  • effective mechanical mass incl. air load mms = 0,76 g
  • total Q factor Qts = 0,41 (Qms=0,68, Qes=1,05)
  • voice coil diameter = 20,4 mm
  • maximum peak linear excursion vibration xlin = +/- 1,75 mm
  • overall diameter d = 36 mm
  • mounting depth (not countersunk) t = 20,8 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB36WBAC21-8

order no. sb-36wbac21-8

EUR 17,69 excl. VAT: € 14.87 / $ 16.05

full range driver with high quality cone.

  • resonance frequency fs = 160 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 75 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 2,1 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 4,2 cm2
  • effective mechanical mass incl. air load mms = 0,7 g
  • total Q factor Qts = 0,6 (Qms=1,75, Qes=0,92)
  • voice coil diameter = 20,4 mm
  • maximum peak linear excursion vibration xlin = +/- 1,8 mm
  • overall diameter d = 36 mm
  • mounting depth (not countersunk) t = 20,8 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB65WBAC25-4

order no. sba-SB65WBAC25-4

EUR 32,00 excl. VAT: € 26.89 / $ 29.04

full range driver with high quality cone.

  • resonance frequency fs = 115 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 83,5 dB (2,83V; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 2,9 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 20 cm2
  • effective mechanical mass incl. air load mms = 2,5 g
  • total Q factor Qts = 0,68 (Qms=6, Qes=0,77)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 2,65 mm
  • overall diameter d = 64 mm
  • mounting depth (not countersunk) t = 38 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB10PGC21-4

order no. sb-10pgc21-4

EUR 17,58 excl. VAT: € 14.77 / $ 15.95

full range driver with high quality cone.

  • resonance frequency fs = 89 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 2,3 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 27 cm2
  • effective mechanical mass incl. air load mms = 2,8 g
  • total Q factor Qts = 0,93 (Qms=11,2, Qes=1,01)
  • voice coil diameter = 20,4 mm
  • maximum peak linear excursion vibration xlin = +/- 2,25 mm
  • mounting diameter d = 73,6 mm
  • overall diameter d = 77,4 mm
  • mounting depth (not countersunk) t = 50,8 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB20FRPC30-8

recommended cabinet 1:
closed cabinet with 27 L volume
from 69/44 Hz (-3dB/-8dB)

recommended cabinet 2:
107 L volume bass reflex cabinet
with HP100 reflex tube, 10 cm long.
from 33/27 Hz (-3dB/-8dB).

SB Acoustics SB20FRPC30-8

order no. sb-20frpc30-8

EUR 49,00 excl. VAT: € 41.18 / $ 44.47

.

  • resonance frequency fs = 39,4 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 7,15 N/A
  • voice coil inductance L = 0,22 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 16,3 g
  • equivalent volume of compliance Vas = 66,3 l
  • total Q factor Qts = 0,45 (Qms=10,1, Qes=0,47)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 4,1 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 218 mm
  • mounting depth (not countersunk) t = 94,3 mm
PDF data sheet

show kits to this chassis hide kits




Coaxial speaker

SB Acoustics 4

recommended cabinet 1:
closed cabinet with 0,79 L volume
from 129/82 Hz (-3dB/-8dB)

recommended cabinet 2:
2,6 L volume bass reflex cabinet
with HP35 reflex tube, 21 cm long.
from 68/53 Hz (-3dB/-8dB).

SB Acoustics 4" SB12PACR25-4-COAX

order no. sb-12pacr25-4-coax

EUR 65,00 excl. VAT: € 54.62 / $ 58.99

.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 55 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4 N/A
  • voice coil inductance L = 0,25 mH
  • effective piston radiating area Sd = 45 cm2
  • effective mechanical mass incl. air load mms = 5,6 g
  • equivalent volume of compliance Vas = 4,3 l
  • total Q factor Qts = 0,33 (Qms=4,84, Qes=0,35)
  • voice coil diameter = 12,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 102 mm
  • overall diameter d = 122 mm
  • mounting depth (not countersunk) t = 69,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,88 L volume
from 137/86 Hz (-3dB/-8dB)

recommended cabinet 2:
2,9 L volume bass reflex cabinet
with HP35 reflex tube, 16 cm long.
from 72/56 Hz (-3dB/-8dB).

SB Acoustics 4" SB12PFCR25-4-COAX

order no. sb-12pfcr25-4-coax

EUR 48,50 excl. VAT: € 40.76 / $ 44.02

coax driver with high quality cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 58 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 3,8 N/A
  • voice coil inductance L = 0,26 mH
  • effective piston radiating area Sd = 45 cm2
  • effective mechanical mass incl. air load mms = 4,5 g
  • equivalent volume of compliance Vas = 4,8 l
  • total Q factor Qts = 0,33 (Qms=4,07, Qes=0,36)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 102 mm
  • overall diameter d = 122 mm
  • mounting depth (not countersunk) t = 59 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 127/80 Hz (-3dB/-8dB)

recommended cabinet 2:
4,2 L volume bass reflex cabinet
with HP50 reflex tube, 29 cm long.
from 73/55 Hz (-3dB/-8dB).

SB Acoustics 5" SB13PFCR25-4-COAX

order no. sb-13pfcr25-4-coax

EUR 59,94 excl. VAT: € 50.37 / $ 54.40

coax driver with high quality cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 43 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5,1 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 9,1 g
  • equivalent volume of compliance Vas = 14,4 l
  • total Q factor Qts = 0,27 (Qms=2,26, Qes=0,3)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,65 mm
  • mounting diameter d = 122 mm
  • overall diameter d = 150,5 mm
  • mounting depth (not countersunk) t = 80,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6
open a bigger photo

recommended cabinet 1:
closed cabinet with 5 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 48/38 Hz (-3dB/-8dB).

SB Acoustics 6" SB16PFCR25-4-COAX

order no. sb-16pfcr25-4-coax

EUR 62,91 excl. VAT: € 52.87 / $ 57.09

coax driver with high quality cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 36 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5,1 N/A
  • voice coil inductance L = 0,31 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 12,5 g
  • equivalent volume of compliance Vas = 31,3 l
  • total Q factor Qts = 0,31 (Qms=2,6, Qes=0,35)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,65 mm
  • mounting diameter d = 144,5 mm
  • overall diameter d = 176 mm
  • mounting depth (not countersunk) t = 88,3 mm
PDF data sheet

show kits to this chassis hide kits




Mids

SB Acoustics SATORI MD60N-6

SB Acoustics SATORI MD60N-6

order no. sb-satori-md60n-6

EUR 184,00 excl. VAT: € 154.62 / $ 166.99

midrange driver with high quality cone.

  • resonance frequency fs = 450 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 32 cm2
  • voice coil diameter = 60,5 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm
  • mounting diameter d = 98 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 128,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4” SB12MNRX25-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
5,2 L volume bass reflex cabinet
with HP35 reflex tube, 11 cm long.
from 60/48 Hz (-3dB/-8dB).

SB Acoustics 4” SB12MNRX25-4

order no. sb-12MNRX25-4

EUR 49,80 excl. VAT: € 41.85 / $ 45.20

midrange driver with high quality cone.

  • power handling (continuous/programme) = 50 W
  • resonance frequency fs = 58 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 3,7 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 4,9 g
  • equivalent volume of compliance Vas = 5,5 l
  • total Q factor Qts = 0,38 (Qms=3,6, Qes=0,42)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 2,2 mm
  • mounting diameter d = 98,2 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 69,61 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4” SB12NRXF25-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,1 L volume
from 99/62 Hz (-3dB/-8dB)

recommended cabinet 2:
8,7 L volume bass reflex cabinet
with HP35 reflex tube, 9 cm long.
from 46/39 Hz (-3dB/-8dB).

SB Acoustics 4” SB12NRXF25-4

order no. sb-12NRXF25-4

EUR 57,20 excl. VAT: € 48.07 / $ 51.91

midrange driver with high quality cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 61 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 3,6 N/A
  • voice coil inductance L = 0,27 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 5,8 g
  • equivalent volume of compliance Vas = 4,1 l
  • total Q factor Qts = 0,48 (Qms=5,3, Qes=0,53)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 98,2 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 60,61 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4” SB12NRX25-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 105/67 Hz (-3dB/-8dB)

recommended cabinet 2:
6,7 L volume bass reflex cabinet
with HP35 reflex tube, 11 cm long.
from 52/42 Hz (-3dB/-8dB).

SB Acoustics 4” SB12NRX25-4

order no. sb-12NRX25-4

EUR 58,52 excl. VAT: € 49.18 / $ 53.11

midrange driver with high quality cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 55 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 3,6 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 5,6 g
  • equivalent volume of compliance Vas = 5,6 l
  • total Q factor Qts = 0,4 (Qms=3,2, Qes=0,46)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 98,2 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 60,61 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4” SB12NRXF25-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 118/74 Hz (-3dB/-8dB)

recommended cabinet 2:
5,5 L volume bass reflex cabinet
with HP35 reflex tube, 11 cm long.
from 57/47 Hz (-3dB/-8dB).

SB Acoustics 4” SB12NRXF25-8

order no. sb-12nrxf25-8

EUR 57,20 excl. VAT: € 48.07 / $ 51.91

midrange driver with high quality cone.

  • resonance frequency fs = 63 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 5,5 N/A
  • voice coil inductance L = 0,34 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 5,5 g
  • equivalent volume of compliance Vas = 4,2 l
  • total Q factor Qts = 0,42 (Qms=5,4, Qes=0,46)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 98,2 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 69,8 mm
  • mass m = kg
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4” SB12NRX25-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,3 L volume
from 120/76 Hz (-3dB/-8dB)

recommended cabinet 2:
4,6 L volume bass reflex cabinet
with HP35 reflex tube, 13 cm long.
from 61/49 Hz (-3dB/-8dB).

SB Acoustics 4” SB12NRX25-8

order no. sb-12nrx25-8

EUR 58,52 excl. VAT: € 49.18 / $ 53.11

midrange driver with high quality cone.

  • resonance frequency fs = 57 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,5 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 5,4 N/A
  • voice coil inductance L = 0,34 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 5,2 g
  • equivalent volume of compliance Vas = 5,3 l
  • total Q factor Qts = 0,37 (Qms=4,1, Qes=0,41)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 98,2 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 69,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4” SB12CACS25-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,91 L volume
from 127/80 Hz (-3dB/-8dB)

recommended cabinet 2:
2,8 L volume bass reflex cabinet
with HP35 reflex tube, 20 cm long.
from 69/53 Hz (-3dB/-8dB).

SB Acoustics 4” SB12CACS25-4

order no. sb-12cacs25-4

EUR 73,70 excl. VAT: € 61.93 / $ 66.89

midrange driver with ceramic cone.

  • resonance frequency fs = 51 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,3 N/A
  • voice coil inductance L = 0,26 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 6,4 g
  • equivalent volume of compliance Vas = 5,7 l
  • total Q factor Qts = 0,31 (Qms=4,89, Qes=0,33)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 98,2 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 70,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4” SB12CACS25-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 111/70 Hz (-3dB/-8dB)

recommended cabinet 2:
5,2 L volume bass reflex cabinet
with HP35 reflex tube, 13 cm long.
from 57/45 Hz (-3dB/-8dB).

SB Acoustics 4” SB12CACS25-8

order no. sb-12cacs25-8

EUR 73,70 excl. VAT: € 61.93 / $ 66.89

midrange driver with ceramic cone.

  • resonance frequency fs = 51 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,5 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 0,34 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 5,3 g
  • equivalent volume of compliance Vas = 6,5 l
  • total Q factor Qts = 0,37 (Qms=4,85, Qes=0,4)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 98,2 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 70,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15NRXC30-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,3 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
6,8 L volume bass reflex cabinet
with HP50 reflex tube, 23 cm long.
from 60/46 Hz (-3dB/-8dB).

SB Acoustics 5” SB15NRXC30-4

order no. sb-15NRXC30-4

EUR 57,00 excl. VAT: € 47.90 / $ 51.73

bass-midrange driver with high quality cone.

  • power handling (continuous/programme) = 50 W
  • resonance frequency fs = 41 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,7 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 8,6 g
  • equivalent volume of compliance Vas = 16,7 l
  • total Q factor Qts = 0,29 (Qms=5,3, Qes=0,31)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 69 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,6 L volume
from 96/60 Hz (-3dB/-8dB)

recommended cabinet 2:
7,5 L volume bass reflex cabinet
with HP50 reflex tube, 27 cm long.
from 53/41 Hz (-3dB/-8dB).

SB Acoustics 5" SB15NRX2C30-4

order no. sb-15nrx2c30-4

EUR 62,04 excl. VAT: € 52.13 / $ 56.31

bass-midrange driver with high quality cone.

  • resonance frequency fs = 36 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,7 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 9,7 g
  • equivalent volume of compliance Vas = 18,6 l
  • total Q factor Qts = 0,29 (Qms=4,53, Qes=0,31)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 78,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,8 L volume
from 85/53 Hz (-3dB/-8dB)

recommended cabinet 2:
13,5 L volume bass reflex cabinet
with HP50 reflex tube, 18 cm long.
from 43/34 Hz (-3dB/-8dB).

SB Acoustics 5" SB15NRX2C30-8

order no. sb-15nrx2c30-8

EUR 62,04 excl. VAT: € 52.13 / $ 56.31

bass-midrange driver with high quality cone.

  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 5,8 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 9,2 g
  • equivalent volume of compliance Vas = 16,9 l
  • total Q factor Qts = 0,37 (Qms=4,18, Qes=0,4)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 78,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15MFC30-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,5 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
7 L volume bass reflex cabinet
with HP50 reflex tube, 28 cm long.
from 55/42 Hz (-3dB/-8dB).

SB Acoustics 5” SB15MFC30-4

order no. sb-15mfc30-4

EUR 61,49 excl. VAT: € 51.67 / $ 55.81

bass-midrange driver with polypropylene cone.

  • resonance frequency fs = 35,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,8 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 9,9 g
  • equivalent volume of compliance Vas = 19,4 l
  • total Q factor Qts = 0,28 (Qms=5,26, Qes=0,3)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 79 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15MFC30-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 4 L volume
from 85/53 Hz (-3dB/-8dB)

recommended cabinet 2:
14,1 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 43/34 Hz (-3dB/-8dB).

SB Acoustics 5” SB15MFC30-8

order no. sb-15mfc30-8

EUR 61,49 excl. VAT: € 51.67 / $ 55.81

bass-midrange driver with polypropylene cone.

  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 5,6 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 9 g
  • equivalent volume of compliance Vas = 17,7 l
  • total Q factor Qts = 0,37 (Qms=4,4, Qes=0,4)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 79 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15NAC30-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
8,2 L volume bass reflex cabinet
with HP50 reflex tube, 28 cm long.
from 49/38 Hz (-3dB/-8dB).

SB Acoustics 5” SB15NAC30-4

order no. sb-15nac30-4

EUR 74,10 excl. VAT: € 62.27 / $ 67.25

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 35 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,8 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 10,8 g
  • equivalent volume of compliance Vas = 18,3 l
  • total Q factor Qts = 0,3 (Qms=5,65, Qes=0,32)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150,04 mm
  • mounting depth (not countersunk) t = 78,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15NAC30-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 4 L volume
from 77/49 Hz (-3dB/-8dB)

recommended cabinet 2:
14,1 L volume bass reflex cabinet
with HP50 reflex tube, 21 cm long.
from 39/31 Hz (-3dB/-8dB).

SB Acoustics 5” SB15NAC30-8

order no. sb-15nac30-8

EUR 74,10 excl. VAT: € 62.27 / $ 67.25

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 35,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,5 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 5,9 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 10,8 g
  • equivalent volume of compliance Vas = 17,7 l
  • total Q factor Qts = 0,37 (Qms=6, Qes=0,39)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 78,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15NBAC30-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,9 L volume
from 88/55 Hz (-3dB/-8dB)

recommended cabinet 2:
8,5 L volume bass reflex cabinet
with HP50 reflex tube, 29 cm long.
from 49/37 Hz (-3dB/-8dB).

SB Acoustics 5” SB15NBAC30-4

order no. sb-15nbac30-4

EUR 79,07 excl. VAT: € 66.45 / $ 71.76

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 33 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,7 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 10,6 g
  • equivalent volume of compliance Vas = 21 l
  • total Q factor Qts = 0,29 (Qms=4,4, Qes=0,31)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 78,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15NBAC30-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,1 L volume
from 75/47 Hz (-3dB/-8dB)

recommended cabinet 2:
14,8 L volume bass reflex cabinet
with HP50 reflex tube, 22 cm long.
from 38/30 Hz (-3dB/-8dB).

SB Acoustics 5” SB15NBAC30-8

order no. sb-15nbac30-8

EUR 79,07 excl. VAT: € 66.45 / $ 71.76

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 35,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,5 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 5,7 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 17 l
  • total Q factor Qts = 0,37 (Qms=4,22, Qes=0,41)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 78,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15CAC30-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 79/50 Hz (-3dB/-8dB)

recommended cabinet 2:
11,1 L volume bass reflex cabinet
with HP50 reflex tube, 27 cm long.
from 42/33 Hz (-3dB/-8dB).

SB Acoustics 5” SB15CAC30-4

order no. sb-15cac30-4

EUR 96,76 excl. VAT: € 81.31 / $ 87.82

bass-midrange driver with ceramic cone.

  • resonance frequency fs = 32,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,6 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 11,3 g
  • equivalent volume of compliance Vas = 20,2 l
  • total Q factor Qts = 0,31 (Qms=4,61, Qes=0,34)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 78,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15CAC30-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,6 L volume
from 73/46 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP50 reflex tube, 19 cm long.
from 37/29 Hz (-3dB/-8dB).

SB Acoustics 5” SB15CAC30-8

order no. sb-15cac30-8

EUR 96,76 excl. VAT: € 81.31 / $ 87.82

bass-midrange driver with ceramic cone.

  • resonance frequency fs = 35,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 5,7 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 10,7 g
  • equivalent volume of compliance Vas = 17,9 l
  • total Q factor Qts = 0,38 (Qms=4,77, Qes=0,42)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 78,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15CRC30-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,2 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
10,5 L volume bass reflex cabinet
with HP50 reflex tube, 23 cm long.
from 46/36 Hz (-3dB/-8dB).

SB Acoustics 5” SB15CRC30-4

order no. sb-15crc30-4

EUR 102,52 excl. VAT: € 86.15 / $ 93.04

bass-midrange driver with glass fibre,sw cone.

  • resonance frequency fs = 37 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,6 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 10,2 g
  • equivalent volume of compliance Vas = 17,3 l
  • total Q factor Qts = 0,31 (Qms=3,39, Qes=0,36)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 78,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5” SB15CRC30-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,4 L volume
from 78/50 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 39/31 Hz (-3dB/-8dB).

SB Acoustics 5” SB15CRC30-8

order no. sb-15crc30-8

EUR 102,52 excl. VAT: € 86.15 / $ 93.04

bass-midrange driver with glass fibre,sw cone.

  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 5,6 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 9,8 g
  • equivalent volume of compliance Vas = 14,9 l
  • total Q factor Qts = 0,38 (Qms=3,52, Qes=0,46)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 78,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17NRX2C35-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 7,1 L volume
from 74/47 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with HP70 reflex tube, 23 cm long.
from 37/30 Hz (-3dB/-8dB).

SB Acoustics 6” SB17NRX2C35-4

order no. sb-17nrx2c35-4

EUR 70,07 excl. VAT: € 58.88 / $ 63.59

bass-midrange driver with high quality cone.

  • resonance frequency fs = 36 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,9 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 13,9 g
  • equivalent volume of compliance Vas = 27,6 l
  • total Q factor Qts = 0,38 (Qms=4,49, Qes=0,41)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 85,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17NRX2C35-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 9 L volume
from 68/43 Hz (-3dB/-8dB)

recommended cabinet 2:
35 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 33/27 Hz (-3dB/-8dB).

SB Acoustics 6” SB17NRX2C35-8

order no. sb-17nrx2c35-8

EUR 70,07 excl. VAT: € 58.88 / $ 63.59

bass-midrange driver with high quality cone.

  • resonance frequency fs = 36,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 6,25 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 13,9 g
  • equivalent volume of compliance Vas = 27 l
  • total Q factor Qts = 0,43 (Qms=4,55, Qes=0,47)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 89,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17MFC35-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,7 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP50 reflex tube, 16 cm long.
from 46/35 Hz (-3dB/-8dB).

SB Acoustics 6” SB17MFC35-4

order no. sb-17mfc35-4

EUR 69,41 excl. VAT: € 58.33 / $ 62.99

bass-midrange driver with polypropylene cone.

  • resonance frequency fs = 30 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,9 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 12,3 g
  • equivalent volume of compliance Vas = 45 l
  • total Q factor Qts = 0,28 (Qms=5,2, Qes=0,3)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 86 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17MFC35-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,8 L volume
from 72/45 Hz (-3dB/-8dB)

recommended cabinet 2:
31 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 37/29 Hz (-3dB/-8dB).

SB Acoustics 6” SB17MFC35-8

order no. sb-17mfc35-8

EUR 69,41 excl. VAT: € 58.33 / $ 62.99

bass-midrange driver with polypropylene cone.

  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 5,9 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 11,8 g
  • equivalent volume of compliance Vas = 39 l
  • total Q factor Qts = 0,37 (Qms=4,9, Qes=0,4)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 86 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17NAC35-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,7 L volume
from 78/49 Hz (-3dB/-8dB)

recommended cabinet 2:
18 L volume bass reflex cabinet
with HP50 reflex tube, 16 cm long.
from 41/32 Hz (-3dB/-8dB).

SB Acoustics 6” SB17NAC35-4

order no. sb-17NAC35-4

EUR 78,10 excl. VAT: € 65.63 / $ 70.88

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 32 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 14,8 g
  • equivalent volume of compliance Vas = 33 l
  • total Q factor Qts = 0,32 (Qms=5,95, Qes=0,34)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 85,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17NAC35-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 10,3 L volume
from 60/38 Hz (-3dB/-8dB)

recommended cabinet 2:
40 L volume bass reflex cabinet
with HP70 reflex tube, 23 cm long.
from 30/24 Hz (-3dB/-8dB).

SB Acoustics 6” SB17NAC35-8

order no. sb-17NAC35-8

EUR 78,10 excl. VAT: € 65.63 / $ 70.88

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 31,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 6,2 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 15,2 g
  • equivalent volume of compliance Vas = 33 l
  • total Q factor Qts = 0,42 (Qms=6, Qes=0,45)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 86 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17NBAC35-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,9 L volume
from 80/50 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP50 reflex tube, 16 cm long.
from 44/34 Hz (-3dB/-8dB).

SB Acoustics 6” SB17NBAC35-4

order no. sb-17nbac35-4

EUR 83,32 excl. VAT: € 70.02 / $ 75.62

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 30 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,9 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 12,4 g
  • equivalent volume of compliance Vas = 42,6 l
  • total Q factor Qts = 0,29 (Qms=4,3, Qes=0,31)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 86 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17NBAC35-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,9 L volume
from 72/46 Hz (-3dB/-8dB)

recommended cabinet 2:
30 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 38/30 Hz (-3dB/-8dB).

SB Acoustics 6” SB17NBAC35-8

order no. sb-17nbac35-8

EUR 83,32 excl. VAT: € 70.02 / $ 75.62

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 31,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 5,9 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 12,5 g
  • equivalent volume of compliance Vas = 45 l
  • total Q factor Qts = 0,35 (Qms=4,1, Qes=0,38)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 86 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17CRC35-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,5 L volume
from 74/47 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 39/31 Hz (-3dB/-8dB).

SB Acoustics 6” SB17CRC35-4

order no. sb-17crc35-4

EUR 108,13 excl. VAT: € 90.87 / $ 98.13

bass-midrange driver with glass fibre,sw cone.

  • resonance frequency fs = 31,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 5 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 14,2 g
  • equivalent volume of compliance Vas = 35,5 l
  • total Q factor Qts = 0,32 (Qms=4,32, Qes=0,35)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 86 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17CRC35-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,8 L volume
from 66/42 Hz (-3dB/-8dB)

recommended cabinet 2:
29 L volume bass reflex cabinet
with HP70 reflex tube, 27 cm long.
from 35/27 Hz (-3dB/-8dB).

SB Acoustics 6” SB17CRC35-8

order no. sb-17crc35-8

EUR 108,13 excl. VAT: € 90.87 / $ 98.13

bass-midrange driver with glass fibre,sw cone.

  • resonance frequency fs = 28 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 6 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 13,3 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,34 (Qms=3,9, Qes=0,37)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 86 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17CAC35-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,2 L volume
from 78/49 Hz (-3dB/-8dB)

recommended cabinet 2:
15 L volume bass reflex cabinet
with HP50 reflex tube, 19 cm long.
from 43/33 Hz (-3dB/-8dB).

SB Acoustics 6” SB17CAC35-4

order no. sb-17cac35-4

EUR 103,82 excl. VAT: € 87.24 / $ 94.22

bass-midrange driver with ceramic cone.

  • resonance frequency fs = 29,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 5,3 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 15,2 g
  • equivalent volume of compliance Vas = 37,8 l
  • total Q factor Qts = 0,29 (Qms=4,7, Qes=0,31)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 86 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17CAC35-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 9,5 L volume
from 61/38 Hz (-3dB/-8dB)

recommended cabinet 2:
33 L volume bass reflex cabinet
with HP70 reflex tube, 28 cm long.
from 31/25 Hz (-3dB/-8dB).

SB Acoustics 6” SB17CAC35-8

order no. sb-17cac35-8

EUR 103,82 excl. VAT: € 87.24 / $ 94.22

bass-midrange driver with ceramic cone.

  • resonance frequency fs = 28 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 6,2 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 15,4 g
  • equivalent volume of compliance Vas = 42 l
  • total Q factor Qts = 0,36 (Qms=4,46, Qes=0,4)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 86 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6 ,5” SATORI MW16P
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,2 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with HP70 reflex tube, 26 cm long.
from 37/29 Hz (-3dB/-8dB).

SB Acoustics 6 ,5” SATORI MW16P

order no. sb-SATORI-MW16p

EUR 187,55 excl. VAT: € 157.61 / $ 170.21

bass-midrange driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 29 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 6,3 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 12,4 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,32 (Qms=4,5, Qes=0,35)
  • voice coil diameter = 36 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 136 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 75,57 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6 ,5” SATORI MW16TX-4

recommended cabinet 1:
closed cabinet with 5,7 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 47/36 Hz (-3dB/-8dB).

SB Acoustics 6 ,5” SATORI MW16TX-4

order no. sb-satori-mw16tx-4

EUR 322,71 excl. VAT: € 271.18 / $ 292.88

bass-midrange driver with high quality cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 29 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,5 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 12,6 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,27 (Qms=5, Qes=0,29)
  • voice coil diameter = 36 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 140,3 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 86,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6 ,5” SATORI MW16TX-8

recommended cabinet 1:
closed cabinet with 8,2 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with HP70 reflex tube, 26 cm long.
from 37/29 Hz (-3dB/-8dB).

SB Acoustics 6 ,5” SATORI MW16TX-8

order no. sb-satori-mw16tx-8

EUR 322,71 excl. VAT: € 271.18 / $ 292.88

bass-midrange driver with high quality cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 29 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 6,3 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 12,3 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,33 (Qms=4,7, Qes=0,35)
  • voice coil diameter = 36 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 140,3 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 86,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5" x 8" SB15SFCR39-4

order no. sb-15sfcr39-4

EUR 41,66 excl. VAT: € 35.01 / $ 37.81

bass-midrange driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 31,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 7 N/A
  • voice coil inductance L = 0,88 mH
  • effective piston radiating area Sd = 178 cm2
  • effective mechanical mass incl. air load mms = 24 g
  • equivalent volume of compliance Vas = 47,8 l
  • total Q factor Qts = 0,33 (Qms=7,9, Qes=0,34)
  • voice coil diameter = 38,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 220x121 mm
  • overall diameter d = 253x153 mm
  • mounting depth (not countersunk) t = 84,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5" x 8" SB15SFCR39-8

order no. sb-15sfcr39-8

EUR 41,66 excl. VAT: € 35.01 / $ 37.81

bass-midrange driver with high quality cone.

  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 8 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 178 cm2
  • effective mechanical mass incl. air load mms = 23 g
  • equivalent volume of compliance Vas = 48,3 l
  • total Q factor Qts = 0,42 (Qms=7,11, Qes=0,45)
  • voice coil diameter = 38,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 220x121 mm
  • overall diameter d = 253x153 mm
  • mounting depth (not countersunk) t = 84,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5" x 8" SB15SFCR-00

order no. sb-15sfcr-00

EUR 26,60 excl. VAT: € 22.35 / $ 24.14

bass-midrange driver with high quality cone.

  • resonance frequency fs = 21 Hz
  • effective piston radiating area Sd = 178 cm2
  • effective mechanical mass incl. air load mms = 62 g
  • equivalent volume of compliance Vas = 41,8 l
  • total Q factor Qts = (Qms=2,7, Qes=)
  • mounting diameter d = 220x121 mm
  • overall diameter d = 253x153 mm
  • mounting depth (not countersunk) t = 49,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8” SB23NRXS45-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 13 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
39 L volume bass reflex cabinet
with HP70 reflex tube, 17 cm long.
from 38/29 Hz (-3dB/-8dB).

SB Acoustics 8” SB23NRXS45-4

order no. sb-SB23NRXS45-4

EUR 106,70 excl. VAT: € 89.66 / $ 96.84

bass-midrange driver with high quality cone.

  • resonance frequency fs = 27 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 6,9 N/A
  • voice coil inductance L = 0,29 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 27,2 g
  • equivalent volume of compliance Vas = 87,5 l
  • total Q factor Qts = 0,3 (Qms=5,55, Qes=0,32)
  • voice coil diameter = 45,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 205 mm
  • overall diameter d = 234 mm
  • mounting depth (not countersunk) t = 92,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8” SB23NACS45-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 17 L volume
from 54/34 Hz (-3dB/-8dB)

recommended cabinet 2:
58 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 29/22 Hz (-3dB/-8dB).

SB Acoustics 8” SB23NACS45-4

order no. sb-23nacs45-4

EUR 121,40 excl. VAT: € 102.02 / $ 110.18

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 23 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 6,7 N/A
  • voice coil inductance L = 0,27 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 32 g
  • equivalent volume of compliance Vas = 95 l
  • total Q factor Qts = 0,33 (Qms=5,4, Qes=0,35)
  • voice coil diameter = 45,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 205 mm
  • overall diameter d = 234 mm
  • mounting depth (not countersunk) t = 92,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8” SB23NACS45-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 23 L volume
from 53/33 Hz (-3dB/-8dB)

recommended cabinet 2:
82 L volume bass reflex cabinet
with HP100 reflex tube, 32 cm long.
from 27/21 Hz (-3dB/-8dB).

SB Acoustics 8” SB23NACS45-8

order no. sb-23nacs45-8

EUR 121,40 excl. VAT: € 102.02 / $ 110.18

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 7,9 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 28,5 g
  • equivalent volume of compliance Vas = 94 l
  • total Q factor Qts = 0,37 (Qms=5,6, Qes=0,4)
  • voice coil diameter = 45,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 198 mm
  • overall diameter d = 234 mm
  • mounting depth (not countersunk) t = 92,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8” SB23NBACS45-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 17 L volume
from 54/34 Hz (-3dB/-8dB)

recommended cabinet 2:
58 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 29/22 Hz (-3dB/-8dB).

SB Acoustics 8” SB23NBACS45-4

order no. sb-23nbacs45-4

EUR 124,84 excl. VAT: € 104.91 / $ 113.30

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 23 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 6,7 N/A
  • voice coil inductance L = 0,27 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 32 g
  • equivalent volume of compliance Vas = 95 l
  • total Q factor Qts = 0,33 (Qms=5,4, Qes=0,35)
  • voice coil diameter = 45,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 205 mm
  • overall diameter d = 234 mm
  • mounting depth (not countersunk) t = 92,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8” SB23NBACS45-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 26 L volume
from 50/32 Hz (-3dB/-8dB)

recommended cabinet 2:
96 L volume bass reflex cabinet
with HP100 reflex tube, 29 cm long.
from 25/20 Hz (-3dB/-8dB).

SB Acoustics 8” SB23NBACS45-8

order no. sb-23nbacs45-8

EUR 124,84 excl. VAT: € 104.91 / $ 113.30

bass-midrange driver with aluminium cone.

  • resonance frequency fs = 25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 7,9 N/A
  • voice coil inductance L = 0,37 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 31,2 g
  • equivalent volume of compliance Vas = 93,4 l
  • total Q factor Qts = 0,4 (Qms=5,54, Qes=0,43)
  • voice coil diameter = 45,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 205 mm
  • overall diameter d = 234 mm
  • mounting depth (not countersunk) t = 92,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8” SB23CACS45-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 17 L volume
from 54/34 Hz (-3dB/-8dB)

recommended cabinet 2:
58 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 29/22 Hz (-3dB/-8dB).

SB Acoustics 8” SB23CACS45-4

order no. sb-23cacs45-4

EUR 144,18 excl. VAT: € 121.16 / $ 130.85

bass-midrange driver with ceramic cone.

  • resonance frequency fs = 23 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 6,7 N/A
  • voice coil inductance L = 0,27 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 33 g
  • equivalent volume of compliance Vas = 95 l
  • total Q factor Qts = 0,33 (Qms=6, Qes=0,35)
  • voice coil diameter = 45,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 205 mm
  • overall diameter d = 234 mm
  • mounting depth (not countersunk) t = 92,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8” SB23CACS45-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 26 L volume
from 49/31 Hz (-3dB/-8dB)

recommended cabinet 2:
97 L volume bass reflex cabinet
with HP100 reflex tube, 31 cm long.
from 24/20 Hz (-3dB/-8dB).

SB Acoustics 8” SB23CACS45-8

order no. sb-23cacs45-8

EUR 144,18 excl. VAT: € 121.16 / $ 130.85

bass-midrange driver with ceramic cone.

  • resonance frequency fs = 25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 7,9 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 31 g
  • equivalent volume of compliance Vas = 87 l
  • total Q factor Qts = 0,4 (Qms=5,41, Qes=0,44)
  • voice coil diameter = 45,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 205 mm
  • overall diameter d = 234 mm
  • mounting depth (not countersunk) t = 92,4 mm
PDF data sheet

show kits to this chassis hide kits




Woofer

SB Acoustics 4" SB12PFC-00

order no. sb-12pfc-00

EUR 18,30 excl. VAT: € 15.38 / $ 16.61

bass driver with high quality cone.

  • resonance frequency fs = 34 Hz
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 18,8 g
  • equivalent volume of compliance Vas = 4,2 l
  • total Q factor Qts = (Qms=12,5, Qes=)
  • mounting diameter d = 102 mm
  • overall diameter d = 108,89 mm
  • mounting depth (not countersunk) t = 28 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4
open a bigger photo

recommended cabinet 1:
closed cabinet with 2 L volume
from 104/66 Hz (-3dB/-8dB)

recommended cabinet 2:
7,8 L volume bass reflex cabinet
with HP35 reflex tube, 9 cm long.
from 50/41 Hz (-3dB/-8dB).

SB Acoustics 4" SB12PFCR25-4

order no. sb-12pfcr25-4

EUR 24,21 excl. VAT: € 20.34 / $ 21.97

bass driver with high quality cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 58 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 3,5 N/A
  • voice coil inductance L = 0,26 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 5,3 g
  • equivalent volume of compliance Vas = 5,2 l
  • total Q factor Qts = 0,43 (Qms=3,4, Qes=0,49)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 102 mm
  • overall diameter d = 122 mm
  • mounting depth (not countersunk) t = 59 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
14 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 41/35 Hz (-3dB/-8dB).

SB Acoustics 4" SB12PFCR25-8

order no. sb-12pfcr25-8

EUR 24,21 excl. VAT: € 20.34 / $ 21.97

bass driver with high quality cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 64 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84,5 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 4,5 N/A
  • voice coil inductance L = 0,36 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 5,1 g
  • equivalent volume of compliance Vas = 4,3 l
  • total Q factor Qts = 0,56 (Qms=4,1, Qes=0,65)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 102 mm
  • overall diameter d = 122 mm
  • mounting depth (not countersunk) t = 59 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,85 L volume
from 131/83 Hz (-3dB/-8dB)

recommended cabinet 2:
2,6 L volume bass reflex cabinet
with HP35 reflex tube, 20 cm long.
from 71/55 Hz (-3dB/-8dB).

SB Acoustics 4" SB12PAC25-4

order no. sb-12PAC25-4

EUR 29,92 excl. VAT: € 25.14 / $ 27.15

bass driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 52,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,35 N/A
  • voice coil inductance L = 0,25 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 6,1 g
  • equivalent volume of compliance Vas = 5,3 l
  • total Q factor Qts = 0,31 (Qms=5, Qes=0,33)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 102 mm
  • overall diameter d = 108,9 mm
  • mounting depth (not countersunk) t = 59 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4" SB12PAC25-00

order no. sb-12pac25-00

EUR 19,60 excl. VAT: € 16.47 / $ 17.79

bass driver with aluminium cone.

  • resonance frequency fs = 33 Hz
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 19,2 g
  • equivalent volume of compliance Vas = 4,3 l
  • total Q factor Qts = (Qms=12,4, Qes=)
  • mounting diameter d = 102 mm
  • overall diameter d = 106,89 mm
  • mounting depth (not countersunk) t = 28 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,7 L volume
from 116/74 Hz (-3dB/-8dB)

recommended cabinet 2:
4,7 L volume bass reflex cabinet
with HP35 reflex tube, 14 cm long.
from 66/50 Hz (-3dB/-8dB).

SB Acoustics 5" SATORI MW13P-4

order no. sb-satori-mw13p-4

EUR 176,43 excl. VAT: € 148.26 / $ 160.12

bass driver with high quality cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 41 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • force factor BL = 4,9 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 7,2 g
  • equivalent volume of compliance Vas = 14,6 l
  • total Q factor Qts = 0,27 (Qms=3,71, Qes=0,29)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 63 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 73,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,1 L volume
from 110/70 Hz (-3dB/-8dB)

recommended cabinet 2:
6,1 L volume bass reflex cabinet
with HP35 reflex tube, 11 cm long.
from 61/47 Hz (-3dB/-8dB).

SB Acoustics 5" SATORI MW13P-8

order no. sb-satori-mw13p-8

EUR 176,43 excl. VAT: € 148.26 / $ 160.12

bass driver with high quality cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 41,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 5,7 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 6,8 g
  • equivalent volume of compliance Vas = 15 l
  • total Q factor Qts = 0,3 (Qms=3,55, Qes=0,33)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 110,6 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 73,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,7 L volume
from 116/74 Hz (-3dB/-8dB)

recommended cabinet 2:
4,7 L volume bass reflex cabinet
with HP35 reflex tube, 14 cm long.
from 66/50 Hz (-3dB/-8dB).

SB Acoustics 5" SATORI MW13PNW-4

order no. sb-satori-mw13pnw-4

EUR 176,43 excl. VAT: € 148.26 / $ 160.12

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 41 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • force factor BL = 4,9 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 7,2 g
  • equivalent volume of compliance Vas = 14,6 l
  • total Q factor Qts = 0,27 (Qms=3,71, Qes=0,29)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 110,6 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 73,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,1 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
6,1 L volume bass reflex cabinet
with HP35 reflex tube, 12 cm long.
from 60/46 Hz (-3dB/-8dB).

SB Acoustics 5" SATORI MW13PNW-8

order no. sb-satori-mw13pnw-8

EUR 176,43 excl. VAT: € 148.26 / $ 160.12

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 41 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 5,7 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 7 g
  • equivalent volume of compliance Vas = 15 l
  • total Q factor Qts = 0,31 (Qms=3,84, Qes=0,33)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 110,6 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 73,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 135/85 Hz (-3dB/-8dB)

recommended cabinet 2:
3,8 L volume bass reflex cabinet
with HP35 reflex tube, 12 cm long.
from 82/61 Hz (-3dB/-8dB).

SB Acoustics 5" SATORI MR13P-4

order no. sb-satori-mr13p-4

EUR 191,66 excl. VAT: € 161.06 / $ 173.94

bass driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 41 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 4,3 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 5,4 g
  • equivalent volume of compliance Vas = 19,4 l
  • total Q factor Qts = 0,23 (Qms=2,8, Qes=0,25)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 110,6 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 73,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
5,6 L volume bass reflex cabinet
with HP35 reflex tube, 11 cm long.
from 63/49 Hz (-3dB/-8dB).

SB Acoustics 5" SATORI MR13P-8

order no. sb-satori-mr13p-8

EUR 191,66 excl. VAT: € 161.06 / $ 173.94

bass driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 6,1 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 6 g
  • equivalent volume of compliance Vas = 12,5 l
  • total Q factor Qts = 0,31 (Qms=4,25, Qes=0,33)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 110,6 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 73,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 135/85 Hz (-3dB/-8dB)

recommended cabinet 2:
3,8 L volume bass reflex cabinet
with HP35 reflex tube, 12 cm long.
from 82/61 Hz (-3dB/-8dB).

SB Acoustics 5" SATORI MR13PNW-4

order no. sb-satori-mr13pnw-4

EUR 191,66 excl. VAT: € 161.06 / $ 173.94

bass driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 41 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 4,3 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 5,4 g
  • equivalent volume of compliance Vas = 19,4 l
  • total Q factor Qts = 0,23 (Qms=2,8, Qes=0,25)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 110,6 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 73,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 125/79 Hz (-3dB/-8dB)

recommended cabinet 2:
5,2 L volume bass reflex cabinet
with HP35 reflex tube, 10 cm long.
from 69/53 Hz (-3dB/-8dB).

SB Acoustics 5" SATORI MR13PNW-8

order no. sb-satori-mr13pnw-8

EUR 191,66 excl. VAT: € 161.06 / $ 173.94

bass driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 47 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 6,2 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 6,2 g
  • equivalent volume of compliance Vas = 12,9 l
  • total Q factor Qts = 0,3 (Qms=4,58, Qes=0,32)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 110,6 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 73,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
4,1 L volume bass reflex cabinet
with HP35 reflex tube, 16 cm long.
from 68/51 Hz (-3dB/-8dB).

SB Acoustics 5" SATORI MW13TX-4

order no. sb-satori-mw13tx-4

EUR 295,34 excl. VAT: € 248.18 / $ 268.04

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 38 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • force factor BL = 5 N/A
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 7,4 g
  • equivalent volume of compliance Vas = 16 l
  • total Q factor Qts = 0,26 (Qms=5,08, Qes=0,27)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 110,6 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 73,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5

recommended cabinet 1:
closed cabinet with 2,4 L volume
from 100/63 Hz (-3dB/-8dB)

recommended cabinet 2:
7,4 L volume bass reflex cabinet
with HP35 reflex tube, 11 cm long.
from 54/42 Hz (-3dB/-8dB).

SB Acoustics 5" SATORI MW13TX-8

order no. sb-satori-mw13tx-8

EUR 295,34 excl. VAT: € 248.18 / $ 268.04

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 5,7 N/A
  • voice coil inductance L = 0,18 mH
  • effective piston radiating area Sd = 70 cm2
  • effective mechanical mass incl. air load mms = 7,3 g
  • equivalent volume of compliance Vas = 14,8 l
  • total Q factor Qts = 0,32 (Qms=4,99, Qes=0,34)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 110,6 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 73,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 117/74 Hz (-3dB/-8dB)

recommended cabinet 2:
5,4 L volume bass reflex cabinet
with HP50 reflex tube, 25 cm long.
from 65/50 Hz (-3dB/-8dB).

SB Acoustics 5" SB13PFCR25-4

order no. sb-13pfcr25-4

EUR 31,23 excl. VAT: € 26.24 / $ 28.34

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 44 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5,3 N/A
  • voice coil inductance L = 0,56 mH
  • effective piston radiating area Sd = 87 cm2
  • effective mechanical mass incl. air load mms = 10,5 g
  • equivalent volume of compliance Vas = 13,4 l
  • total Q factor Qts = 0,29 (Qms=2,6, Qes=0,33)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 122 mm
  • overall diameter d = 150,5 mm
  • mounting depth (not countersunk) t = 80,65 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,3 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
7,4 L volume bass reflex cabinet
with HP50 reflex tube, 20 cm long.
from 58/45 Hz (-3dB/-8dB).

SB Acoustics 5" SB13PFCR25-8

order no. sb-13pfcr25-8

EUR 31,23 excl. VAT: € 26.24 / $ 28.34

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 6,2 N/A
  • voice coil inductance L = 0,77 mH
  • effective piston radiating area Sd = 87 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 13,4 l
  • total Q factor Qts = 0,33 (Qms=2,2, Qes=0,39)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 122 mm
  • overall diameter d = 150,5 mm
  • mounting depth (not countersunk) t = 80,65 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,5 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
14,5 L volume bass reflex cabinet
with HP50 reflex tube, 18 cm long.
from 48/36 Hz (-3dB/-8dB).

SB Acoustics 6,5" SATORI MW16P-4

order no. sb-SATORI-MW16p-4

EUR 187,55 excl. VAT: € 157.61 / $ 170.21

bass driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 28 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,5 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 12,8 g
  • equivalent volume of compliance Vas = 50,2 l
  • total Q factor Qts = 0,27 (Qms=5, Qes=0,28)
  • voice coil diameter = 36 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 140,1 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 86,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,1 L volume
from 80/50 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 45/34 Hz (-3dB/-8dB).

SB Acoustics 6,5" SATORI MW16PNW-4

order no. sb-satori-mw16pnw-4

EUR 187,55 excl. VAT: € 157.61 / $ 170.21

bass driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 28 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 5 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 12,2 g
  • equivalent volume of compliance Vas = 51,8 l
  • total Q factor Qts = 0,27 (Qms=4,5, Qes=0,29)
  • voice coil diameter = 36 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 140,1 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 86,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 8 L volume
from 72/46 Hz (-3dB/-8dB)

recommended cabinet 2:
25 L volume bass reflex cabinet
with HP70 reflex tube, 26 cm long.
from 39/30 Hz (-3dB/-8dB).

SB Acoustics 6,5" SATORI MW16PNW-8

order no. sb-satori-mw16pnw-8

EUR 187,55 excl. VAT: € 157.61 / $ 170.21

bass driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 29 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 6,3 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 12,1 g
  • equivalent volume of compliance Vas = 49,9 l
  • total Q factor Qts = 0,32 (Qms=4,72, Qes=0,34)
  • voice coil diameter = 36 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 140,1 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 86,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,4 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
10,6 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 59/44 Hz (-3dB/-8dB).

SB Acoustics 6,5" SATORI MR16P-4

order no. sb-satori-mr16p-4

EUR 207,55 excl. VAT: € 174.41 / $ 188.36

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 31 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 11,2 g
  • equivalent volume of compliance Vas = 47,2 l
  • total Q factor Qts = 0,25 (Qms=4,85, Qes=0,26)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,1 mm
  • mounting diameter d = 140,3 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 86,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,1 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
18 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 47/36 Hz (-3dB/-8dB).

SB Acoustics 6,5" SATORI MR16P-8

order no. sb-satori-mr16p-8

EUR 207,55 excl. VAT: € 174.41 / $ 188.36

bass driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 6,5 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 10,6 g
  • equivalent volume of compliance Vas = 44,3 l
  • total Q factor Qts = 0,3 (Qms=5,11, Qes=0,32)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,1 mm
  • mounting diameter d = 140,3 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 86,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,4 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
10,6 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 59/44 Hz (-3dB/-8dB).

SB Acoustics 6,5" SATORI MR16PNW-4

order no. sb-satori-mr16pnw-4

EUR 207,55 excl. VAT: € 174.41 / $ 188.36

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 31 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 11,2 g
  • equivalent volume of compliance Vas = 47,2 l
  • total Q factor Qts = 0,25 (Qms=4,85, Qes=0,26)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,1 mm
  • mounting diameter d = 140,3 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 86,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,1 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
18 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 47/36 Hz (-3dB/-8dB).

SB Acoustics 6,5" SATORI MR16PNW-8

order no. sb-satori-mr16pnw-8

EUR 207,55 excl. VAT: € 174.41 / $ 188.36

bass driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 6,5 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 10,6 g
  • equivalent volume of compliance Vas = 44,3 l
  • total Q factor Qts = 0,3 (Qms=5,11, Qes=0,32)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,1 mm
  • mounting diameter d = 140,3 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 86,1 mm
PDF data sheet

show kits to this chassis hide kits

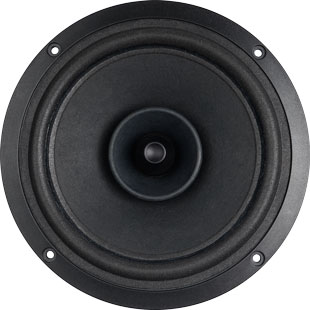

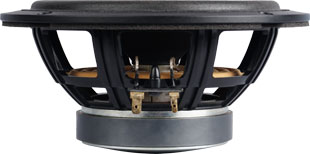

SB Acoustics 6
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,4 L volume
from 80/51 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP70 reflex tube, 24 cm long.
from 42/33 Hz (-3dB/-8dB).

SB Acoustics 6" SB16PFCR25-4

order no. sb-16pfcr25-4

EUR 32,81 excl. VAT: € 27.57 / $ 29.78

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 35 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5 N/A
  • voice coil inductance L = 0,56 mH
  • effective piston radiating area Sd = 124 cm2
  • effective mechanical mass incl. air load mms = 13,8 g
  • equivalent volume of compliance Vas = 32,7 l
  • total Q factor Qts = 0,34 (Qms=2,76, Qes=0,39)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 144,5 mm
  • overall diameter d = 176 mm
  • mounting depth (not countersunk) t = 88,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,4 L volume
from 80/51 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP70 reflex tube, 24 cm long.
from 42/33 Hz (-3dB/-8dB).

SB Acoustics 6" SB16PFC25-4

order no. sb-16PFC25-4

EUR 28,00 excl. VAT: € 23.53 / $ 25.41

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 35 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5 N/A
  • voice coil inductance L = 0,56 mH
  • effective piston radiating area Sd = 124 cm2
  • effective mechanical mass incl. air load mms = 13,8 g
  • equivalent volume of compliance Vas = 32,7 l
  • total Q factor Qts = 0,34 (Qms=2,76, Qes=0,39)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 144,5 mm
  • overall diameter d = 160 mm
  • mounting depth (not countersunk) t = 88,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6
open a bigger photo

recommended cabinet 1:
closed cabinet with 7,9 L volume
from 75/47 Hz (-3dB/-8dB)

recommended cabinet 2:
30 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 37/30 Hz (-3dB/-8dB).

SB Acoustics 6" SB16PFCR25-8

order no. sb-16pfcr25-8

EUR 32,81 excl. VAT: € 27.57 / $ 29.78

bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 6,2 N/A
  • voice coil inductance L = 0,77 mH
  • effective piston radiating area Sd = 124 cm2
  • effective mechanical mass incl. air load mms = 13,8 g
  • equivalent volume of compliance Vas = 27 l
  • total Q factor Qts = 0,4 (Qms=2,5, Qes=0,48)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 144,5 mm
  • overall diameter d = 176 mm
  • mounting depth (not countersunk) t = 88,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6" SB16PFCR-00

order no. sb-16pfcr-00

EUR 24,57 excl. VAT: € 20.65 / $ 22.30

bass driver with paper cone.

  • resonance frequency fs = 22 Hz
  • effective piston radiating area Sd = 124 cm2
  • effective mechanical mass incl. air load mms = 38 g
  • equivalent volume of compliance Vas = 30 l
  • total Q factor Qts = (Qms=4,4, Qes=)
  • mounting diameter d = 144,5 mm
  • overall diameter d = 176 mm
  • mounting depth (not countersunk) t = 59,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 7,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,1 L volume
from 88/55 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP50 reflex tube, 12 cm long.
from 49/38 Hz (-3dB/-8dB).

SB Acoustics 7,5" SATORI MW19P-4

order no. sb-satori-mw19p-4

EUR 213,08 excl. VAT: € 179.06 / $ 193.38

bass driver with paper cone.

  • power handling (continuous/programme) = 70 W
  • resonance frequency fs = 32 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 6,5 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 158 cm2
  • effective mechanical mass incl. air load mms = 18,4 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,28 (Qms=4,11, Qes=0,3)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 6,8 mm
  • mounting diameter d = 163 mm
  • overall diameter d = 187 mm
  • mounting depth (not countersunk) t = 101,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 7,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,2 L volume
from 79/50 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 42/33 Hz (-3dB/-8dB).

SB Acoustics 7,5" SATORI MW19P-8

order no. sb-satori-mw19p-8

EUR 213,08 excl. VAT: € 179.06 / $ 193.38

bass driver with paper cone.

  • power handling (continuous/programme) = 70 W
  • resonance frequency fs = 32,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 7,8 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 158 cm2
  • effective mechanical mass incl. air load mms = 17,9 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,33 (Qms=4,06, Qes=0,36)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 6,7 mm
  • mounting diameter d = 163 mm
  • overall diameter d = 187 mm
  • mounting depth (not countersunk) t = 101,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 7,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 5 L volume
from 120/76 Hz (-3dB/-8dB)

recommended cabinet 2:
10,1 L volume bass reflex cabinet
with HP50 reflex tube, 12 cm long.
from 77/57 Hz (-3dB/-8dB).

SB Acoustics 7,5" SATORI MW19PNW-4

order no. sb-satori-mw19pnw-4

EUR 213,08 excl. VAT: € 179.06 / $ 193.38

bass driver with paper cone.

  • power handling (continuous/programme) = 70 W
  • resonance frequency fs = 32 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 6,5 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 158 cm2
  • effective mechanical mass incl. air load mms = 16,7 g
  • equivalent volume of compliance Vas = 78,1 l
  • total Q factor Qts = 0,21 (Qms=4,02, Qes=0,22)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 6,8 mm
  • mounting diameter d = 163 mm
  • overall diameter d = 187 mm
  • mounting depth (not countersunk) t = 101,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 7,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,3 L volume
from 96/60 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP70 reflex tube, 16 cm long.
from 55/42 Hz (-3dB/-8dB).

SB Acoustics 7,5" SATORI MW19PNW-8

order no. sb-satori-mw19pnw-8

EUR 213,08 excl. VAT: € 179.06 / $ 193.38

bass driver with paper cone.

  • power handling (continuous/programme) = 70 W
  • resonance frequency fs = 32,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 158 cm2
  • effective mechanical mass incl. air load mms = 16,3 g
  • equivalent volume of compliance Vas = 76,1 l
  • total Q factor Qts = 0,27 (Qms=4,41, Qes=0,29)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 6,7 mm
  • mounting diameter d = 163 mm
  • overall diameter d = 187 mm
  • mounting depth (not countersunk) t = 101,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 7,5'' SATORI MW19TX-4

recommended cabinet 1:
closed cabinet with 6,3 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP70 reflex tube, 24 cm long.
from 52/39 Hz (-3dB/-8dB).

SB Acoustics 7,5'' SATORI MW19TX-4

order no. sb-satori-mw19tx-4

EUR 374,39 excl. VAT: € 314.61 / $ 339.78

bass driver with paper cone.

  • power handling (continuous/programme) = 70 W
  • resonance frequency fs = 32 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 6,3 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 158 cm2
  • effective mechanical mass incl. air load mms = 16,2 g
  • equivalent volume of compliance Vas = 53,2 l
  • total Q factor Qts = 0,27 (Qms=5,43, Qes=0,28)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 6,8 mm
  • mounting diameter d = 163 mm
  • overall diameter d = 187 mm
  • mounting depth (not countersunk) t = 101,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 7,5'' SATORI MW19TX-8

recommended cabinet 1:
closed cabinet with 9,2 L volume
from 80/50 Hz (-3dB/-8dB)

recommended cabinet 2:
29 L volume bass reflex cabinet
with HP70 reflex tube, 17 cm long.
from 43/33 Hz (-3dB/-8dB).

SB Acoustics 7,5'' SATORI MW19TX-8

order no. sb-satori-mw19tx-8

EUR 374,39 excl. VAT: € 314.61 / $ 339.78

bass driver with paper cone.

  • power handling (continuous/programme) = 70 W
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 158 cm2
  • effective mechanical mass incl. air load mms = 15,6 g
  • equivalent volume of compliance Vas = 53,4 l
  • total Q factor Qts = 0,33 (Qms=6,47, Qes=0,35)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 6,7 mm
  • mounting diameter d = 163 mm
  • overall diameter d = 187 mm
  • mounting depth (not countersunk) t = 101,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8
open a bigger photo

recommended cabinet 1:
closed cabinet with 7,8 L volume
from 60/38 Hz (-3dB/-8dB)

recommended cabinet 2:
27 L volume bass reflex cabinet
with HP70 reflex tube, 37 cm long.
from 31/24 Hz (-3dB/-8dB).

SB Acoustics 8" SB23MFCL45-4

order no. sb-23mfcl45-4

EUR 148,39 excl. VAT: € 124.70 / $ 134.67

bass driver with polypropylene cone.

  • power handling (continuous/programme) = 150 W
  • resonance frequency fs = 27 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 9,6 N/A
  • voice coil inductance L = 0,73 mH
  • effective piston radiating area Sd = 210 cm2
  • effective mechanical mass incl. air load mms = 59 g
  • equivalent volume of compliance Vas = 37 l
  • total Q factor Qts = 0,34 (Qms=7,7, Qes=0,36)
  • voice coil diameter = 45,5 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 203 mm
  • overall diameter d = 234 mm
  • mounting depth (not countersunk) t = 122,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,1 L volume
from 52/33 Hz (-3dB/-8dB)

recommended cabinet 2:
52 L volume bass reflex cabinet
with HP70 reflex tube, 23 cm long.
from 25/21 Hz (-3dB/-8dB).

SB Acoustics 8" SB23MFCL45-8

order no. sb-23mfcl45-8

EUR 148,39 excl. VAT: € 124.70 / $ 134.67

bass driver with polypropylene cone.

  • power handling (continuous/programme) = 150 W
  • resonance frequency fs = 28,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 11,3 N/A
  • voice coil inductance L = 1,02 mH
  • effective piston radiating area Sd = 210 cm2
  • effective mechanical mass incl. air load mms = 53 g
  • equivalent volume of compliance Vas = 37 l
  • total Q factor Qts = 0,43 (Qms=7,3, Qes=0,46)
  • voice coil diameter = 45,5 mm
  • maximum peak linear excursion vibration xlin = +/- 10,5 mm
  • mounting diameter d = 203 mm
  • overall diameter d = 234 mm
  • mounting depth (not countersunk) t = 122,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8” SB23NRXS45-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 23 L volume
from 57/36 Hz (-3dB/-8dB)

recommended cabinet 2:
82 L volume bass reflex cabinet
with HP100 reflex tube, 26 cm long.
from 29/23 Hz (-3dB/-8dB).

SB Acoustics 8” SB23NRXS45-8

order no. sb-SB23NRXS45-8

EUR 106,70 excl. VAT: € 89.66 / $ 96.84

bass driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 27 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 24,5 g
  • equivalent volume of compliance Vas = 94 l
  • total Q factor Qts = 0,38 (Qms=5,4, Qes=0,41)
  • voice coil diameter = 45,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 198 mm
  • overall diameter d = 234 mm
  • mounting depth (not countersunk) t = 80,67 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8
open a bigger photo

recommended cabinet 1:
closed cabinet with 12,2 L volume
from 80/51 Hz (-3dB/-8dB)

recommended cabinet 2:
40 L volume bass reflex cabinet
with HP100 reflex tube, 28 cm long.
from 42/33 Hz (-3dB/-8dB).

SB Acoustics 8" SB20PFCR30-4

order no. sb-20pfcr30-4

EUR 39,53 excl. VAT: € 33.22 / $ 35.88

bass driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • resonance frequency fs = 34 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92,5 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 6,6 N/A
  • voice coil inductance L = 0,71 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 22,4 g
  • equivalent volume of compliance Vas = 66,2 l
  • total Q factor Qts = 0,33 (Qms=2,78, Qes=0,37)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 218 mm
  • mounting depth (not countersunk) t = 94,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 8
open a bigger photo

recommended cabinet 1:
closed cabinet with 14,9 L volume
from 74/47 Hz (-3dB/-8dB)

recommended cabinet 2:
53 L volume bass reflex cabinet
with HP100 reflex tube, 24 cm long.
from 38/30 Hz (-3dB/-8dB).

SB Acoustics 8" SB20PFCR30-8

order no. sb-20pfcr30-8

EUR 39,53 excl. VAT: € 33.22 / $ 35.88

bass driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • resonance frequency fs = 34 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90,5 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 7,7 N/A
  • voice coil inductance L = 0,84 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 21,2 g
  • equivalent volume of compliance Vas = 66,2 l
  • total Q factor Qts = 0,37 (Qms=2,66, Qes=0,43)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 218 mm
  • mounting depth (not countersunk) t = 94,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 9,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 21 L volume
from 55/35 Hz (-3dB/-8dB)

recommended cabinet 2:
79 L volume bass reflex cabinet
with HP100 reflex tube, 30 cm long.
from 27/22 Hz (-3dB/-8dB).

SB Acoustics 9,5" SATORI WO24P-4

order no. sb-satori-wo24p-4

EUR 256,58 excl. VAT: € 215.61 / $ 232.86

bass driver with high quality cone.

  • power handling (continuous/programme) = 90 W
  • resonance frequency fs = 28 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 7,6 N/A
  • voice coil inductance L = 0,29 mH
  • effective piston radiating area Sd = 255 cm2
  • effective mechanical mass incl. air load mms = 42 g
  • equivalent volume of compliance Vas = 71 l
  • total Q factor Qts = 0,4 (Qms=6,7, Qes=0,42)
  • voice coil diameter = 49,5 mm
  • maximum peak linear excursion vibration xlin = +/- 8,5 mm
  • mounting diameter d = 209,3 mm
  • overall diameter d = 242 mm
  • mounting depth (not countersunk) t = 131,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 9,5
open a bigger photo

recommended cabinet 1:
closed cabinet with 23 L volume
from 50/32 Hz (-3dB/-8dB)

recommended cabinet 2:
83 L volume bass reflex cabinet
with HP100 reflex tube, 35 cm long.
from 25/20 Hz (-3dB/-8dB).

SB Acoustics 9,5" SATORI WO24P-8

order no. sb-satori-wo24p-8

EUR 256,58 excl. VAT: € 215.61 / $ 232.86

bass driver with high quality cone.

  • power handling (continuous/programme) = 90 W
  • resonance frequency fs = 24,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 9,9 N/A
  • voice coil inductance L = 0,56 mH
  • effective piston radiating area Sd = 255 cm2
  • effective mechanical mass incl. air load mms = 44,5 g
  • equivalent volume of compliance Vas = 87,5 l
  • total Q factor Qts = 0,38 (Qms=5,7, Qes=0,41)
  • voice coil diameter = 49,5 mm
  • maximum peak linear excursion vibration xlin = +/- 8,5 mm
  • mounting diameter d = 209,3 mm
  • overall diameter d = 242 mm
  • mounting depth (not countersunk) t = 131,4 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SB29NRX75-6
open a bigger photo

recommended cabinet 1:
closed cabinet with 22 L volume
from 47/30 Hz (-3dB/-8dB)

recommended cabinet 2:
74 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 24/19 Hz (-3dB/-8dB).

SB Acoustics 10” SB29NRX75-6

order no. sb-29NRX75-6

EUR 169,90 excl. VAT: € 142.77 / $ 154.19

bass driver with high quality cone.

  • power handling (continuous/programme) = 200 W
  • resonance frequency fs = 21 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 4,2 Ohm
  • force factor BL = 10,7 N/A
  • voice coil inductance L = 1,8 mH
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 78 g
  • equivalent volume of compliance Vas = 102 l
  • total Q factor Qts = 0,36 (Qms=5,7, Qes=0,38)
  • voice coil diameter = 75,6 mm
  • maximum peak linear excursion vibration xlin = +/- 11 mm
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 119 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SB29SWNRX-S75-6
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,4 L volume
from 55/35 Hz (-3dB/-8dB)

recommended cabinet 2:
24 L volume bass reflex cabinet
with HP70 reflex tube, 52 cm long.
from 31/24 Hz (-3dB/-8dB).

SB Acoustics 10” SB29SWNRX-S75-6

order no. sb-29SWNRX-S75-6

EUR 178,97 excl. VAT: € 150.39 / $ 162.43

bass driver with high quality cone.

  • power handling (continuous/programme) = 200 W
  • resonance frequency fs = 20 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 4,5 Ohm
  • force factor BL = 15,4 N/A
  • voice coil inductance L = 3 mH
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 132 g
  • equivalent volume of compliance Vas = 66 l
  • total Q factor Qts = 0,29 (Qms=4,5, Qes=0,31)
  • voice coil diameter = 75,6 mm
  • maximum peak linear excursion vibration xlin = +/- 11 mm
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 119 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SW26DAC76-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 25 L volume
from 37/23 Hz (-3dB/-8dB)

recommended cabinet 2:
100 L volume bass reflex cabinet
with HP70 reflex tube, 24 cm long.
from 17/14 Hz (-3dB/-8dB).

SB Acoustics 10” SW26DAC76-4

order no. sb-SW26DAC76-4

EUR 260,00 excl. VAT: € 218.49 / $ 235.97

bass driver with aluminium cone.

  • power handling (continuous/programme) = 200 W
  • resonance frequency fs = 22 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 10,8 N/A
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 134 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = 0,46 (Qms=4,5, Qes=0,51)
  • voice coil diameter = 75,5 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 244 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 71,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SW26DAC76-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,9 L volume
from 57/36 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP70 reflex tube, 76 cm long.
from 33/25 Hz (-3dB/-8dB).

SB Acoustics 10” SW26DAC76-8

order no. sb-SW26DAC76-8

EUR 260,00 excl. VAT: € 218.49 / $ 235.97

bass driver with aluminium cone.

  • power handling (continuous/programme) = 250 W
  • resonance frequency fs = 19,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 21,4 N/A
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 172 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = 0,27 (Qms=4,4, Qes=0,29)
  • voice coil diameter = 75,5 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 70,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SB29NRX75-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 25 L volume
from 50/32 Hz (-3dB/-8dB)

recommended cabinet 2:
91 L volume bass reflex cabinet
with HP100 reflex tube, 31 cm long.
from 25/20 Hz (-3dB/-8dB).

SB Acoustics 10” SB29NRX75-8

order no. sb-29NRX75-8

EUR 169,90 excl. VAT: € 142.77 / $ 154.19

bass driver with high quality cone.

  • power handling (continuous/programme) = 200 W
  • resonance frequency fs = 24,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 11,9 N/A
  • voice coil inductance L = 2,3 mH
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 60,5 g
  • equivalent volume of compliance Vas = 96,6 l
  • total Q factor Qts = 0,39 (Qms=7,16, Qes=0,41)
  • voice coil diameter = 75,6 mm
  • maximum peak linear excursion vibration xlin = +/- 11 mm
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 119 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SW26DBAC76-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 25 L volume
from 37/23 Hz (-3dB/-8dB)

recommended cabinet 2:
100 L volume bass reflex cabinet
with HP70 reflex tube, 24 cm long.
from 17/14 Hz (-3dB/-8dB).

SB Acoustics 10” SW26DBAC76-4

order no. sb-sw26dbac76-4

EUR 319,64 excl. VAT: € 268.61 / $ 290.09

bass driver with aluminium cone.

  • power handling (continuous/programme) = 200 W
  • resonance frequency fs = 22 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 10,8 N/A
  • voice coil inductance L = mH
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 134 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = 0,46 (Qms=4,5, Qes=0,51)
  • voice coil diameter = 75,5 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 70,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SW26DBAC76-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,9 L volume
from 57/36 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP70 reflex tube, 76 cm long.
from 33/25 Hz (-3dB/-8dB).

SB Acoustics 10” SW26DBAC76-8

order no. sb-sw26dbac76-8

EUR 319,64 excl. VAT: € 268.61 / $ 290.09

bass driver with aluminium cone.

  • power handling (continuous/programme) = 250 W
  • resonance frequency fs = 19,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 21,4 N/A
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 172 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = 0,27 (Qms=4,4, Qes=0,29)
  • voice coil diameter = 75,5 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 70,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SW26DAC76-3-DV

order no. sb-sw26dac76-3-dv

EUR 315,00 excl. VAT: € 264.71 / $ 285.88

bass driver with aluminium cone.

  • power handling (continuous/programme) = 300 W
  • resonance frequency fs = 19,5 Hz
  • impedance R = 3+3 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = Ohm
  • force factor BL = N/A
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 185 g
  • equivalent volume of compliance Vas = 49,7 l
  • total Q factor Qts = 0,28 (Qms=5,96, Qes=0,29)
  • voice coil diameter = 75,5 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 70,5 mm

show kits to this chassis hide kits

SB Acoustics 10” SW26DBAC76-3-DV

order no. sb-sw26dbac76-3-dv

EUR 300,00 excl. VAT: € 252.10 / $ 272.27

bass driver with aluminium cone.

  • power handling (continuous/programme) = 300 W
  • resonance frequency fs = 19,5 Hz
  • impedance R = 3+3 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 185 g
  • equivalent volume of compliance Vas = 49,7 l
  • total Q factor Qts = 0,28 (Qms=5,96, Qes=0,29)
  • voice coil diameter = 75,5 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 248 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 70,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SW26DAC-00

order no. sb-sw26dac-00

EUR 179,00 excl. VAT: € 150.42 / $ 162.45

bass driver with aluminium cone.

  • resonance frequency fs = 13 Hz
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 400 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = (Qms=8,8, Qes=)
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 84 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SW26DBAC-00

order no. sb-sw26dbac-00

EUR 178,92 excl. VAT: € 150.35 / $ 162.38

bass driver with aluminium cone.

  • resonance frequency fs = 13 Hz
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 400 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = (Qms=8,8, Qes=)
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 84,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10'' SW26SFC38-4

recommended cabinet 1:
closed cabinet with 13,4 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
42 L volume bass reflex cabinet
with HP70 reflex tube, 15 cm long.
from 38/29 Hz (-3dB/-8dB).

SB Acoustics 10'' SW26SFC38-4

order no. sb-sw26sfc38-4

EUR 109,00 excl. VAT: € 91.60 / $ 98.92

bass driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 28 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 10,8 N/A
  • voice coil inductance L = 1,27 mH
  • effective piston radiating area Sd = 340 cm2
  • effective mechanical mass incl. air load mms = 63 g
  • equivalent volume of compliance Vas = 84 l
  • total Q factor Qts = 0,31 (Qms=5,04, Qes=0,33)
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • overall diameter d = 265 mm
  • mounting depth (not countersunk) t = 74,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10'' SW26SFC38-8

recommended cabinet 1:
closed cabinet with 17 L volume
from 63/40 Hz (-3dB/-8dB)

recommended cabinet 2:
58 L volume bass reflex cabinet
with HP100 reflex tube, 31 cm long.
from 33/26 Hz (-3dB/-8dB).

SB Acoustics 10'' SW26SFC38-8

order no. sb-sw26sfc38-8

EUR 105,00 excl. VAT: € 88.24 / $ 95.29

.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 28,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 13,5 N/A
  • voice coil inductance L = 1,38 mH
  • effective piston radiating area Sd = 340 cm2
  • effective mechanical mass incl. air load mms = 63,7 g
  • equivalent volume of compliance Vas = 80 l
  • total Q factor Qts = 0,31 (Qms=5,18, Qes=0,38)
  • voice coil diameter = 38,5 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 78 mm
  • overall diameter d = 265 mm
  • mounting depth (not countersunk) t = 74,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 12
open a bigger photo

recommended cabinet 1:
closed cabinet with 14,4 L volume
from 45/28 Hz (-3dB/-8dB)

recommended cabinet 2:
48 L volume bass reflex cabinet
with HP100 reflex tube, 87 cm long.
from 24/18 Hz (-3dB/-8dB).

SB Acoustics 12" SB34SWPL76-4

order no. sb-34swpl76-4

EUR 229,57 excl. VAT: € 192.92 / $ 208.35

bass driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • resonance frequency fs = 19 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 18 N/A
  • voice coil inductance L = 5,3 mH
  • effective piston radiating area Sd = 458 cm2
  • effective mechanical mass incl. air load mms = 266 g
  • equivalent volume of compliance Vas = 78,5 l
  • total Q factor Qts = 0,33 (Qms=8,6, Qes=0,34)
  • voice coil diameter = 76 mm
  • maximum peak linear excursion vibration xlin = +/- 15 mm
  • mounting diameter d = 305,2 mm
  • overall diameter d = 346,2 mm
  • mounting depth (not countersunk) t = 146,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 12" SB34SWPL76-3-DV

order no. sb-34swpl76-3-dv

EUR 215,70 excl. VAT: € 181.26 / $ 195.76

bass driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • resonance frequency fs = 27,5 Hz
  • impedance R = 3+3 Ohm
  • effective piston radiating area Sd = 458 cm2
  • effective mechanical mass incl. air load mms = 231 g
  • equivalent volume of compliance Vas = 43 l
  • total Q factor Qts = 0,48 (Qms=5,62, Qes=0,52)
  • voice coil diameter = 75,5 mm
  • maximum peak linear excursion vibration xlin = +/- 15 mm
  • mounting diameter d = 305,2 mm
  • overall diameter d = 346,2 mm
  • mounting depth (not countersunk) t = 146,5 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 12” SB34NRX75-6
open a bigger photo

recommended cabinet 1:
closed cabinet with 71 L volume
from 38/24 Hz (-3dB/-8dB)

recommended cabinet 2:
267 L volume bass reflex cabinet
with 2x HP100 reflex tube, 33 cm long.
from 19/15 Hz (-3dB/-8dB).

SB Acoustics 12” SB34NRX75-6

order no. sb-34NRX75-6

EUR 193,05 excl. VAT: € 162.23 / $ 175.21

bass driver with high quality cone.

  • power handling (continuous/programme) = 200 W
  • resonance frequency fs = 19 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 4,2 Ohm
  • force factor BL = 10,7 N/A
  • voice coil inductance L = 1,8 mH
  • effective piston radiating area Sd = 508 cm2
  • effective mechanical mass incl. air load mms = 99 g
  • equivalent volume of compliance Vas = 260 l
  • total Q factor Qts = 0,4 (Qms=5,1, Qes=0,43)
  • voice coil diameter = 75,6 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 305,2 mm
  • overall diameter d = 346,2 mm
  • mounting depth (not countersunk) t = 146 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 12” SB34SWNRX-S75-6
open a bigger photo

recommended cabinet 1:
closed cabinet with 26 L volume
from 47/30 Hz (-3dB/-8dB)

recommended cabinet 2:
82 L volume bass reflex cabinet
with HP100 reflex tube, 42 cm long.
from 26/20 Hz (-3dB/-8dB).

SB Acoustics 12” SB34SWNRX-S75-6

order no. sb-34SWNRX-S75-6

EUR 200,97 excl. VAT: € 168.88 / $ 182.39

bass driver with high quality cone.

  • power handling (continuous/programme) = 200 W
  • resonance frequency fs = 19 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 4,5 Ohm
  • force factor BL = 15,4 N/A
  • voice coil inductance L = 3 mH
  • effective piston radiating area Sd = 508 cm2
  • effective mechanical mass incl. air load mms = 154 g
  • equivalent volume of compliance Vas = 164 l
  • total Q factor Qts = 0,32 (Qms=5, Qes=0,34)
  • voice coil diameter = 75,6 mm
  • maximum peak linear excursion vibration xlin = +/- 11 mm
  • mounting diameter d = 305,2 mm
  • overall diameter d = 346,2 mm
  • mounting depth (not countersunk) t = 146 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 12” SB34NRX75-16

order no. sb-34nrx75-16

EUR 204,27 excl. VAT: € 171.66 / $ 185.39

bass driver with high quality cone.

  • power handling (continuous/programme) = 100 W
  • resonance frequency fs = 24,5 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 14 Ohm
  • force factor BL = 14,5 N/A
  • voice coil inductance L = 3,2 mH
  • effective piston radiating area Sd = 508 cm2
  • effective mechanical mass incl. air load mms = 72 g
  • equivalent volume of compliance Vas = 216 l
  • total Q factor Qts = 0,66 (Qms=6,52, Qes=0,74)
  • voice coil diameter = 75,6 mm
  • maximum peak linear excursion vibration xlin = +/- 11 mm
  • mounting diameter d = 305,2 mm
  • overall diameter d = 346,2 mm
  • mounting depth (not countersunk) t = 142 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 12” SB34NRXL75-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 24 L volume
from 63/39 Hz (-3dB/-8dB)

recommended cabinet 2:
66 L volume bass reflex cabinet
with HP100 reflex tube, 28 cm long.
from 36/27 Hz (-3dB/-8dB).

SB Acoustics 12” SB34NRXL75-8

order no. sb-34NRXL75-8

EUR 276,21 excl. VAT: € 232.11 / $ 250.68

bass driver with high quality cone.

  • power handling (continuous/programme) = 200 W
  • resonance frequency fs = 22 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 16,6 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 508 cm2
  • effective mechanical mass incl. air load mms = 93 g
  • equivalent volume of compliance Vas = 205 l
  • total Q factor Qts = 0,28 (Qms=5,5, Qes=0,29)
  • voice coil diameter = 75,6 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 305,2 mm
  • overall diameter d = 346,2 mm
  • mounting depth (not countersunk) t = 146 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 15” SB42FHC75-6
open a bigger photo

recommended cabinet 1:
closed cabinet with 77 L volume
from 48/30 Hz (-3dB/-8dB)

recommended cabinet 2:
277 L volume bass reflex cabinet
with 2x HP100 reflex tube, 17 cm long.
from 24/19 Hz (-3dB/-8dB).

SB Acoustics 15” SB42FHC75-6

order no. sb-42FHC75-6

EUR 432,92 excl. VAT: € 363.80 / $ 392.90

bass driver with high quality cone.

  • power handling (continuous/programme) = 300 W
  • resonance frequency fs = 22,5 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 4,6 Ohm
  • force factor BL = 16,2 N/A
  • voice coil inductance L = 2,1 mH
  • effective piston radiating area Sd = 850 cm2
  • effective mechanical mass incl. air load mms = 160 g
  • equivalent volume of compliance Vas = 318 l
  • total Q factor Qts = 0,37 (Qms=5,4, Qes=0,4)
  • voice coil diameter = 75,6 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 377 mm
  • overall diameter d = 417 mm
  • mounting depth (not countersunk) t = 170,3 mm
PDF data sheet

show kits to this chassis hide kits




Passive Radiators

SB Acoustics DW50

order no. sb-DW50

EUR 5,00 excl. VAT: € 4.20 / $ 4.54

.

  • effective mechanical mass incl. air load mms = 50 g
  • overall diameter d = 70 mm
  • mounting depth (not countersunk) t = 4,9 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4" SB12PFC-00

order no. sb-12pfc-00

EUR 18,30 excl. VAT: € 15.38 / $ 16.61

.

  • resonance frequency fs = 34 Hz
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 18,8 g
  • equivalent volume of compliance Vas = 4,2 l
  • total Q factor Qts = (Qms=12,5, Qes=)
  • mounting diameter d = 102 mm
  • overall diameter d = 108,89 mm
  • mounting depth (not countersunk) t = 28 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 4" SB12PAC25-00

order no. sb-12pac25-00

EUR 19,60 excl. VAT: € 16.47 / $ 17.79

.

  • resonance frequency fs = 33 Hz
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 19,2 g
  • equivalent volume of compliance Vas = 4,3 l
  • total Q factor Qts = (Qms=12,4, Qes=)
  • mounting diameter d = 102 mm
  • overall diameter d = 106,89 mm
  • mounting depth (not countersunk) t = 28 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6" SB16PFCR-00

order no. sb-16pfcr-00

EUR 24,57 excl. VAT: € 20.65 / $ 22.30

.

  • resonance frequency fs = 22 Hz
  • effective piston radiating area Sd = 124 cm2
  • effective mechanical mass incl. air load mms = 38 g
  • equivalent volume of compliance Vas = 30 l
  • total Q factor Qts = (Qms=4,4, Qes=)
  • mounting diameter d = 144,5 mm
  • overall diameter d = 176 mm
  • mounting depth (not countersunk) t = 59,3 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 5" x 8" SB15SFCR-00

order no. sb-15sfcr-00

EUR 26,60 excl. VAT: € 22.35 / $ 24.14

.

  • resonance frequency fs = 21 Hz
  • effective piston radiating area Sd = 178 cm2
  • effective mechanical mass incl. air load mms = 62 g
  • equivalent volume of compliance Vas = 41,8 l
  • total Q factor Qts = (Qms=2,7, Qes=)
  • overall diameter d = 253x153 mm
  • mounting depth (not countersunk) t = 49,7 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SB29NRX-00

order no. sb-29NRX-00

EUR 99,33 excl. VAT: € 83.47 / $ 90.15

.

  • resonance frequency fs = 10,2 Hz
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 505 g
  • equivalent volume of compliance Vas = 66 l
  • total Q factor Qts = (Qms=10,8, Qes=)
  • maximum peak linear excursion vibration xlin = +/- 17 mm
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 79,1 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SB29NRX2-00

SB Acoustics 10” SB29NRX2-00

order no. sb-29nrx2-00

EUR 99,33 excl. VAT: € 83.47 / $ 90.15

.

  • resonance frequency fs = 17 Hz
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 205 g
  • equivalent volume of compliance Vas = 60 l
  • total Q factor Qts = (Qms=7,3, Qes=)
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SW26DAC-00

order no. sb-sw26dac-00

EUR 179,00 excl. VAT: € 150.42 / $ 162.45

.

  • resonance frequency fs = 13 Hz
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 400 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = (Qms=8,8, Qes=)
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 84 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 10” SW26DBAC-00

order no. sb-sw26dbac-00

EUR 178,92 excl. VAT: € 150.35 / $ 162.38

.

  • resonance frequency fs = 13 Hz
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 400 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = (Qms=8,8, Qes=)
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 84,6 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 12” SB34NRX-00

order no. sb-34NRX-00

EUR 128,31 excl. VAT: € 107.82 / $ 116.45

.

  • effective piston radiating area Sd = 508 cm2
  • effective mechanical mass incl. air load mms = 665 g
  • equivalent volume of compliance Vas = 183 l
  • total Q factor Qts = (Qms=12,1, Qes=)
  • maximum peak linear excursion vibration xlin = +/- 17 mm
  • mounting diameter d = 305,18 mm
  • overall diameter d = 346,2 mm
  • mounting depth (not countersunk) t = 101,95 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 12” SB34NRX2-00

SB Acoustics 12” SB34NRX2-00

order no. sb-sb34nrx2-00

EUR 128,31 excl. VAT: € 107.82 / $ 116.45

.

  • resonance frequency fs = 14 Hz
  • effective piston radiating area Sd = 506 cm2
  • effective mechanical mass incl. air load mms = 294 g
  • equivalent volume of compliance Vas = 160 l
  • total Q factor Qts = (Qms=8,62, Qes=)
PDF data sheet

show kits to this chassis hide kits




no longer sold

SB Acoustics 5” SB15NRXC30-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
11,4 L volume bass reflex cabinet
with HP50 reflex tube, 18 cm long.
from 49/38 Hz (-3dB/-8dB).

SB Acoustics 5” SB15NRXC30-8

order no. sb-15NRXC30-8

- not available

bass-midrange driver with high quality cone.

  • power handling (continuous/programme) = 50 W
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 5,6 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 8,1 g
  • equivalent volume of compliance Vas = 20,7 l
  • total Q factor Qts = 0,33 (Qms=4,8, Qes=0,35)
  • voice coil diameter = 30,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 123,9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 69 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17NRXC35-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 6 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP70 reflex tube, 24 cm long.
from 45/35 Hz (-3dB/-8dB).

SB Acoustics 6” SB17NRXC35-4

order no. sb-17NRXC35-4

- not available

bass-midrange driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 35 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,8 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 11,6 g
  • equivalent volume of compliance Vas = 35,2 l
  • total Q factor Qts = 0,32 (Qms=5,5, Qes=0,34)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 75 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics 6” SB17NRXC35-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,2 L volume
from 75/48 Hz (-3dB/-8dB)

recommended cabinet 2:
27 L volume bass reflex cabinet
with HP70 reflex tube, 22 cm long.
from 40/31 Hz (-3dB/-8dB).

SB Acoustics 6” SB17NRXC35-8

order no. sb-17NRXC35-8

EUR 64,10 excl. VAT: € 53.87 / $ 58.17

bass-midrange driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 5,9 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 11 g
  • equivalent volume of compliance Vas = 44,5 l
  • total Q factor Qts = 0,34 (Qms=5, Qes=0,36)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144,9 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 75 mm
PDF data sheet

show kits to this chassis hide kits

SB Acoustics SB29RDC-C000-4

order no. sb-29RDC-C000-4

- not available

.

  • power handling (continuous/programme) = 100 W
  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,4 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,64 (Qms=2,2, Qes=0,9)
  • voice coil diameter = 29 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 37,55 mm
PDF data sheet

show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright (c) Daniel Gattig, 2023; All rights reserved. - errors and omissions excepted
