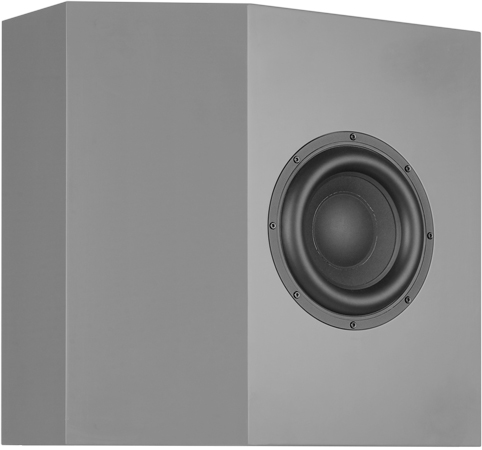

Copernicus Subwoofer   wall-mounted speaker as in K+T 2/2022

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): aktiv dB
  • size (HxWxD): 600 x 600 x 300 mm
  • frequency range (-8dB): 25 - 300 Hz
  • crossover frequency(s): 300, 2150 Hz
  • speaker type: closed box

Copernicus Subwoofer is a versatile subwoofer which complements the rest of the loudspeakers with a powerful and deep bass.

Copernicus exists in five variants:

Copernicus Subwoofer is a closed-cabinet loudspeaker with drivers of Wavecor .

The kit is delivered with a Wavecor SW275BD01 subwoofer

The loudspeaker has been developed by Dennis Frank and Daniel Gattig.

The crossover consists of:

An excerpt from the Klang+Ton review (Translation of the author into English)

"The Copernicus´ performance with the free-field setting directly in front of the wall is impressing, but in the long run it is clearly too powerful. So I first turned the bass department down by about 6 decibels - that´s better. The impression of infinitely deep and dynamic bass is retained, but it doesn't immediately jump in the listener's face (or stomach). This impression extends over the entire audible frequency range: you can clearly hear that there is significantly more membrane area in every position than with your standard loudspeakers. And because the whole thing is so beautifully linear and without any distortion, you can always get really loud without stressing your ears - very good! When it comes to home cinema, things are going just as well... I caught myself stepping on the gas on the subs for the correct doomsday soundtrack à la "Independance Day" or "2012" - but then that's not entirely possible without worrying about the building´s structural integrity…. "

Conclusion of the magazine Klang+Ton:

" Perfectly tuned wall box with an integrated subwoofer solution that leaves no desires whatsoever. "

"High-end tip"

Our kit consists of

  • Wavecor Subwoofer SW275BD01, die cast alu, mica/paper laminated cone, 4 ohm
  • Hypex FusionAmp FA252
  • 3x Damping Sonofil 100 x 35 cm for 20 litres
  • 1,5x Pan screws 4x20 black, torx, 8 pieces
  • Allen wood screws, black, 5x30 mm, 8 pieces
  • Plan for DIY kit

Kit without cabinet, price per speaker   EUR 1260,00 excl. VAT: € 1058.82 / $ 1143.53

Price for a pair of custom speakers of any color   EUR 4380,00 excl. VAT: € 3680.67 / $ 3975.13

Our kit consists of

  • Wavecor Subwoofer SW275BD01, die cast alu, mica/paper laminated cone, 4 ohm
  • 3x Damping Sonofil 100 x 35 cm for 20 litres
  • 2x Binding Post PK28 I, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2 black/red
  • Allen wood screws, black, 5x30 mm, 8 pieces
  • Plan for DIY kit

Kit without cabinet, price per speaker   EUR 714,00 excl. VAT: € 600.00 / $ 648.00
